Plate and Frame Heat Exchanger Diagram and Its Components Overview

plate and frame heat exchanger diagram

When selecting a thermal transfer system, understanding the structure and function of key components is essential for optimizing performance. The arrangement of plates and support structures plays a crucial role in maximizing efficiency, particularly in applications requiring compact designs and high thermal conductivity. Ensure that the components are arranged to facilitate optimal fluid flow, minimizing resistance while enhancing heat conduction.

Maximize Surface Area by using closely spaced, corrugated materials that provide a high contact area. This not only increases the transfer rate but also ensures uniform thermal distribution across all sections. When designing for maximum effectiveness, focus on minimizing the distance between transfer surfaces to prevent energy losses.

Next, it is important to evaluate the fluid dynamics within the unit. The path that each fluid follows must be carefully planned to ensure that both hot and cold fluids are exposed to the largest possible surface area without causing excessive turbulence or resistance. This optimizes both heat transfer and flow rates, crucial for systems operating under varying temperature conditions.

Consider the material selection carefully. High corrosion resistance and thermal conductivity are paramount to long-term performance. Also, ensure that sealing and gaskets used to prevent leakage are of high quality, as even small losses can drastically affect system efficiency and maintenance costs.

Effective Layout for Compact Thermal Transfer Devices

plate and frame heat exchanger diagram

For optimal thermal exchange efficiency, ensure a consistent flow pattern by properly organizing the channel plates. The configuration should allow for a countercurrent flow between the two fluids, maximizing heat transfer. Position the channels in such a way that both liquids travel in opposing directions across the surfaces, enhancing the temperature gradient. Use gaskets or seals that are resistant to the fluids’ properties to prevent leakage while maintaining effective contact.

To achieve the most efficient thermal conduction, select materials that have high thermal conductivity for the plates. Stainless steel or titanium alloys are commonly used due to their durability and excellent performance in demanding environments. In applications where corrosion is a concern, ensure that the seals are resistant to chemical reactions with the fluid streams.

Furthermore, ensure that the spacing between each plate is consistent, as variations can lead to uneven flow and reduced performance. Use pressure plates to maintain an even distribution of force across the plates and ensure that the structure remains stable under operating pressures. This will prevent deformation and improve the longevity of the device.

For systems requiring frequent maintenance or cleaning, design the structure with easy access to all internal surfaces. This allows for quick disassembly and ensures the longevity of the device by facilitating routine inspections and maintenance.

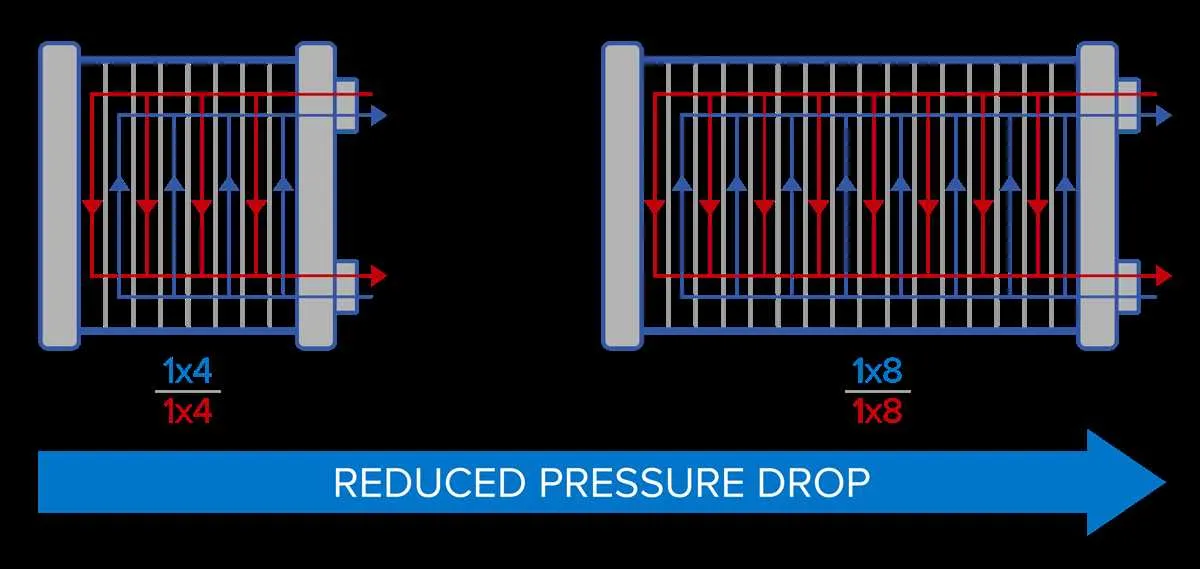

How the Flow Distribution Works in a Plate and Frame Heat Exchanger

plate and frame heat exchanger diagram

To optimize thermal transfer, it is crucial to ensure uniform flow across the channels. The distribution of liquids or gases is managed using specific design features like spacers, distribution plates, and proper inlet/outlet configurations. These components ensure even distribution by directing fluids into multiple channels, preventing dead zones and ensuring that every part of the surface is exposed to the flow.

The direction of the flow also impacts efficiency. A countercurrent arrangement provides the highest temperature gradient, improving heat transfer. A parallel-flow setup, while less efficient, might be suitable for specific applications where space or pressure drop is a concern.

Another key factor is the design of the flow channels. Narrower channels create higher velocity, enhancing heat transfer, but at the cost of increased pressure drop. It’s essential to balance channel size to maintain a good flow rate while minimizing energy consumption.

Additionally, ensuring that the pressure distribution is even throughout the system prevents uneven flow, which could cause localized overheating or inefficient energy usage. This is achieved through a combination of inlet design and baffle placement, which smooths out flow variations.

Common Materials Used for Plates in Thermal Transfer Systems

plate and frame heat exchanger diagram

For optimal performance in thermal transfer units, choosing the right materials for the surface plates is crucial. Below are the commonly used options, each offering distinct advantages depending on the specific application.

  • Stainless Steel: Highly resistant to corrosion, ideal for systems handling aggressive fluids or those requiring sanitation. It offers excellent durability and thermal conductivity.
  • Titanium: Best suited for systems with seawater or corrosive environments. Titanium provides superior resistance to corrosion, especially against chlorides and other harsh substances.
  • Nickel Alloys: Known for their ability to withstand high temperatures and aggressive chemical environments. They are ideal for applications where both corrosion resistance and high strength are necessary.
  • Carbon Steel: Cost-effective and strong, but more prone to corrosion compared to other materials. It is often used in systems with non-corrosive fluids or in applications with protective coatings.
  • Aluminum: Lightweight and cost-effective with good thermal conductivity, but requires protection against oxidation. Often used in systems where weight is a critical factor.

When selecting the appropriate material, it’s important to consider fluid characteristics, temperature conditions, and maintenance requirements for maximum efficiency and longevity.

Maintenance Tips for Plate and Frame Heat Exchangers

Regular inspection of seals and gaskets is crucial to prevent leaks. Check for signs of wear and replace them when necessary to ensure proper sealing. Even minor damage can cause significant efficiency loss.

Ensure the tightness of all bolts. Over time, they may loosen due to thermal expansion and contraction, leading to gaps that reduce performance. Tighten bolts to the manufacturer’s recommended torque to maintain optimal operation.

Clean the plates periodically to remove scale buildup. Accumulation of dirt and deposits can impair heat transfer. Use appropriate cleaning agents that are compatible with the material of the unit, and avoid abrasive methods that can cause surface damage.

Inspect the flow distribution system regularly. Uneven distribution of fluids can lead to hot spots and reduce overall efficiency. Ensure the inlet and outlet ports are functioning properly, and that fluid flow remains balanced across the unit.

Monitor the operating temperatures and pressures. Any deviation from standard operating conditions may signal potential issues. Make adjustments or repairs immediately to prevent further damage and maintain energy efficiency.

Perform leak tests at regular intervals. These checks can identify even small leaks before they lead to system failure. Use a non-invasive method, such as ultrasonic testing, to detect leaks in areas that are hard to reach.

Replace worn or damaged plates promptly. Even a single compromised plate can negatively affect the performance of the entire unit. Keep spare parts on hand for quick replacements and to minimize downtime.
