To ensure proper functionality of your engine’s starting components, it’s essential to have a clear understanding of the electrical flow between the key elements, such as the battery, spark plug, and distributor. A reliable connection between these parts prevents misfires and reduces the likelihood of damage to critical components.
First, check the power supply connections. The battery should be properly charged and linked to the starter motor, as well as to the control unit that triggers the spark timing. A faulty or loose connection here is often the root cause of starting issues. Make sure all contacts are clean and corrosion-free to allow maximum current flow.
Next, ensure the proper grounding. A solid ground connection between the chassis and the negative terminal of the battery will guarantee that the current returns to the battery correctly. Any break in the ground wire will lead to incomplete circuits, which may prevent the engine from firing.
Finally, verify the signal transmission. The distributor or coil needs a consistent input from the control unit to correctly trigger the firing sequence. Improper setup or wear in the wires can disrupt this process, leading to irregular engine performance. Replace any worn-out components promptly to avoid long-term damage.

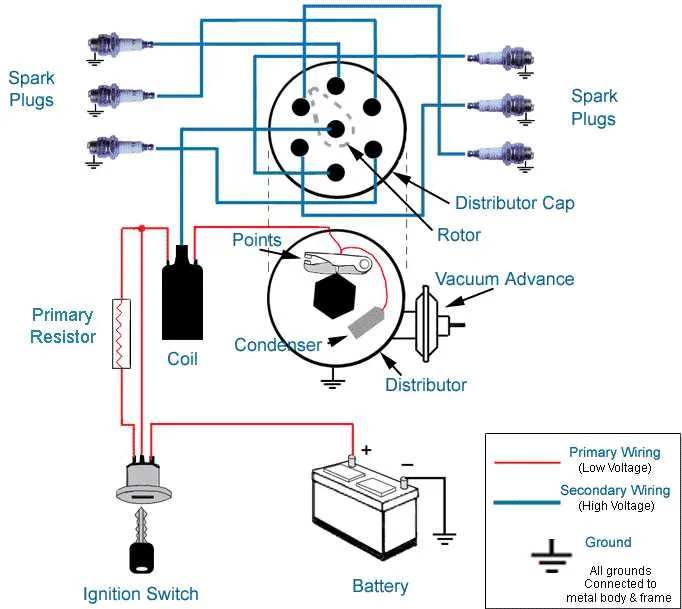

Proper Connection Layout for the Spark Mechanism
Ensure a stable connection between the battery, distributor, and spark plugs for optimal engine performance. The battery’s positive terminal should connect to the ignition coil primary side, while the coil’s secondary side links directly to the distributor cap. Each terminal of the distributor corresponds to a specific cylinder’s spark plug, creating a pathway for electrical impulses to trigger combustion at the right moment.
The contact points inside the distributor must maintain precise spacing to avoid misfires. This can be adjusted by carefully calibrating the breaker plate. Additionally, make sure the coil’s ground connection is solid to prevent unnecessary voltage loss, which can affect the engine’s efficiency.
Pay attention to the condenser’s placement; it should be securely wired between the coil and the contact points. The condenser smooths out the electrical flow, preventing harmful voltage spikes that could damage the components over time. Finally, ensure that all connections are insulated and free from corrosion to avoid unreliable performance.
How to Read and Understand a Spark Circuit Layout
Start by identifying the power source and the ground connection. These are often represented by large, bold symbols or lines. The power feed typically comes from the battery or alternator, while the ground is usually denoted by a symbol resembling a triangle with a line underneath.
Next, locate the central control unit, often referred to as the ECU or ignition module. This component is connected to several other parts, including sensors and relays. These connections can be identified by the lines linking them, sometimes with dots or numbers next to them to represent pins or terminals.
Pay close attention to the individual components, such as the coil, distributor, and sensor units. Each component will be labeled with a specific identifier, usually alphanumeric codes, which can be cross-referenced with a service manual for more details. For example, the coil may be marked “C1” or similar.
Lines connecting components represent wires. In most cases, these lines are color-coded to indicate different functions (e.g., red for power, green for signals). If no color is indicated, it may be useful to refer to the legend for further clarification. Arrowheads indicate current flow direction or signal transmission.
Diodes, fuses, and resistors are also crucial. A diode will typically be shown as a triangle with a line, while a fuse is often depicted as a rectangle. The function of each component is typically noted near the symbol. Resistances are often represented by a zigzag line.
Finally, interpret the sequence of events. The timing of each component’s activation and deactivation is usually shown with dotted lines or phase indicators, providing a clearer understanding of the operation process.
Common Electrical Issues and Troubleshooting Tips
Check for Corroded Connections: Corrosion at terminals or connectors is a frequent cause of poor electrical contact. Inspect all plugs and contacts for signs of rust or buildup. Clean the affected parts using a wire brush and apply dielectric grease to prevent further damage.
Verify Continuity: Use a multimeter to test continuity between components, especially when a spark is weak or non-existent. Breaks or damage in the conductors can lead to faulty performance. Ensure all cables are intact, and connectors are securely fastened.
Inspect Power Supply: Low voltage or inconsistent power can disrupt function. Measure voltage across key components to ensure they are receiving the correct amount of power. If the supply is unstable, check the battery, alternator, or voltage regulator for faults.
Test Grounding Connections: Poor grounding often leads to unreliable operation. Ensure all grounding points are clean and properly connected to a metal surface. A bad ground can cause intermittent failures or erratic performance.
Examine Components for Wear: Inspect critical parts like coils, distributors, and sensors for visible wear or damage. A malfunctioning sensor or broken coil may result in misfires or no spark. Replace defective components promptly.
Check for Shorts: Shorts between cables or contacts can cause erratic behavior. Use a multimeter to check for any unintended connections. If found, trace the circuit to locate the source and repair or replace the damaged part.
Monitor for Interference: Interference from nearby electronic devices or poorly shielded cables can disrupt signals. Ensure cables are routed away from high-power equipment and that shielding is intact to prevent noise interference.
Test and Replace Fuses: A blown fuse can prevent operation entirely. Check all fuses, particularly those related to critical components. Replace any blown fuses with the correct amperage ratings to avoid damaging other parts.
Step-by-Step Guide to Connecting the Spark Setup in Your Car
Start by ensuring the battery is disconnected. This prevents accidental shorts or electric shocks while working.
- Identify the Components
- Locate the distributor, coil, and spark plugs.
- Ensure the ignition switch is in proper working condition and that wiring connections are intact.
- Prepare the Primary Circuit
- Connect the battery’s positive terminal to the coil’s primary terminal.
- Ensure all terminals are clean and free from corrosion before making connections.
- Wire the Secondary Circuit
- Attach the coil’s secondary terminal to the distributor’s center post.
- Ensure proper insulation for the wires to avoid contact with other metal parts.
- Connect Spark Plugs
- Run high-voltage cables from the distributor to each spark plug, maintaining the correct order as per the firing sequence.
- Ensure the connectors are secure, and use insulated boots for added safety.
- Check Grounding
- Make sure the coil and distributor are properly grounded to the engine block.
- Use clean, unpainted metal surfaces for a solid connection.
- Test Connections
- Reconnect the battery and turn the ignition key to the “on” position.
- Check for sparks at the plugs while cranking the engine.
- If there’s no spark, recheck all connections for tightness and correct order.
- Final Inspection
- Inspect the entire setup for potential interference with moving parts or hot surfaces.
- Secure any loose wires using cable ties and ensure they are routed away from heat sources.
