Glacier Bay Faucet Parts Diagram and How to Identify Each Component

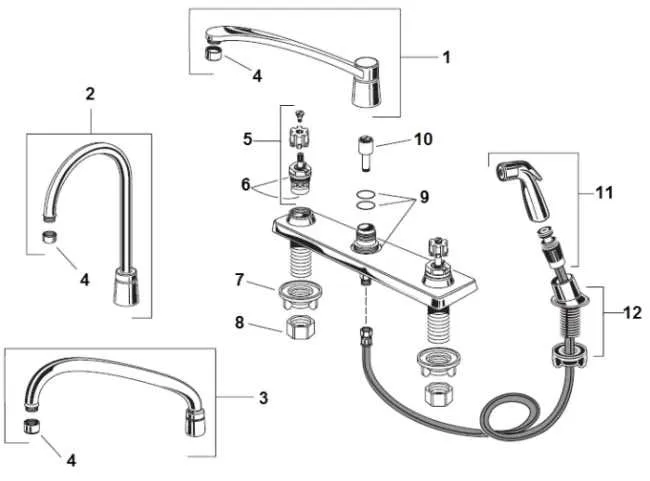

glacier bay faucet parts diagram

If you’re experiencing issues with your kitchen sink, understanding the key components of the water distribution mechanism is crucial. A clear breakdown of these elements allows for quick identification of any malfunctioning parts. Ensuring proper assembly can prevent water leakage, improve functionality, and extend the lifespan of your system.

Start by examining the control mechanism, responsible for regulating water flow. It is essential to confirm that the lever or knob moves freely without resistance. Check if the cartridge is in place, as this piece governs water temperature and pressure. If water drips when the system is off, it’s likely a sign of wear on the sealing components.

Next, inspect the supply valves for signs of corrosion or mineral buildup, which can restrict water flow. Replacing faulty seals or washers will resolve many common issues, such as leaks or inconsistent water pressure. Keep an eye on the mounting hardware to ensure that everything is tightly secured, preventing unwanted movement and water spillage around the base.

For optimal performance, always ensure that every element is compatible with your unit’s specific make and model. A mismatched component can lead to poor functionality or even system failure over time. Regular maintenance and component replacement will help maintain smooth operation in your kitchen.

Essential Components Breakdown for Faucet Assembly

For optimal performance, ensure each component is installed correctly. The key elements include the handle, spout, valve mechanism, cartridge, aerator, and mounting hardware. Replace any damaged or worn-out pieces promptly to maintain smooth operation and avoid leaks.

Start with the valve body. If there’s a lack of water flow or inconsistent temperature control, the cartridge is likely the issue. It’s located within the valve assembly and can be easily swapped out without needing to replace the entire system.

The handle should be securely attached to the valve stem. Loose handles can make adjustments challenging, so check that all screws are tight and the handle moves smoothly when turned.

For cleaning and maintenance, regularly check the aerator for mineral buildup. This small component at the spout’s end can affect water pressure. Simply unscrew it, rinse it, and reinstall to restore optimal flow.

Finally, verify that all mounting hardware is firmly in place. If your fixture wobbles or feels unstable, the securing bolts may have loosened over time. Tighten them to prevent any movement during use.

How to Identify and Replace Key Components in a Sink Tap

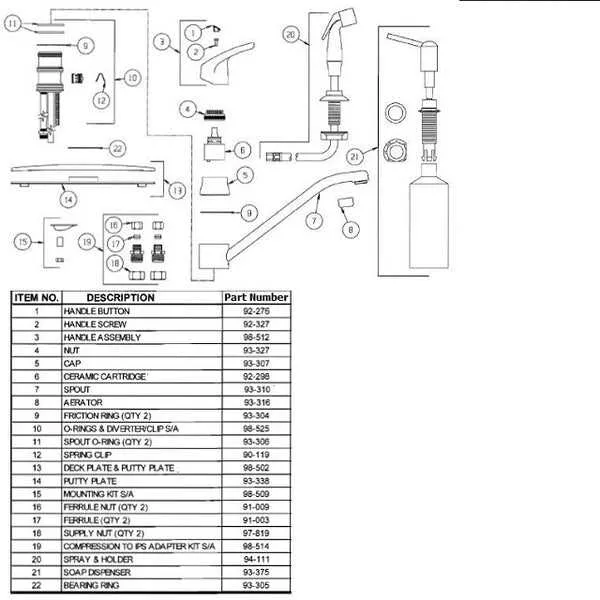

glacier bay faucet parts diagram

To quickly locate the malfunctioning piece in your tap system, start by shutting off the water supply and draining the lines. Identify the cartridge, which is typically responsible for regulating water flow and temperature. This component is often housed inside the handle assembly. If water is leaking from the base, the O-rings or seals may need to be replaced, as they wear out over time.

For models with a ceramic disc system, check for mineral buildup that could be blocking water flow. To replace it, carefully remove the handle and unscrew the top cover to access the cartridge. For rubber washers, inspect for cracks or signs of corrosion; these are the most common culprits for leaks. Replacing them is a straightforward task–just remove the old washer and fit the new one in place.

For any worn-out valve seats, disassemble the unit and inspect the base for any signs of damage. Replacing the valve seat will often fix issues with water leakage or uneven flow. Use a seat wrench to remove the old one, ensuring the new part is securely fitted.

Once the defective components are identified, make sure to purchase high-quality replacements that are compatible with your specific model. Reassembly should follow the reverse order of disassembly, ensuring all parts are tightly secured and correctly aligned to avoid future issues.

Step-by-Step Guide to Troubleshooting Common Glacier Bay Faucet Issues Using the Parts Diagram

glacier bay faucet parts diagram

Start by shutting off the water supply under the sink. Remove the handle using a hex key, typically a 3/32″ size. If the lever is stuck, apply penetrating oil and wait five minutes before trying again.

Inspect the cartridge for wear or mineral buildup. Reference the schematic to identify the exact replacement model. Use needle-nose pliers to extract the cartridge; if it’s resistant, rotate it gently back and forth instead of forcing upward pressure.

Check the O-rings and gaskets beneath the cartridge seat. Cracked or flattened seals cause internal leaks or low flow. Match seal dimensions precisely using calipers before purchasing replacements.

For side-spray malfunctions, trace the hose routing in the layout. Confirm the diverter is free of debris. Clean it using white vinegar if clogged; replace it only if the spring is worn or corroded.

Dripping from the spout often results from a faulty valve stem. Cross-reference its code in the blueprint to find the correct version. Lubricate the stem with plumber’s grease before reinstallation.

If water flow is uneven, remove the aerator and soak it in a 1:1 vinegar solution. Use a toothbrush to scrub away scale. Align the mesh properly during reassembly to avoid spray distortion.

Reassemble in reverse order, tightening all components by hand before using tools. Do not overtighten–this can crack housings or deform threads, leading to further issues.

Understanding Model H2O Tap Schematics for Proper Installation and Maintenance

Align the ceramic cartridge so its inlet ports face the hot and cold supply lines at a 45° angle before tightening to 8 lb‑ft to ensure a drip‑free seal.

  • Identify numbered callouts on the schematic and match them to the exploded-view legend:
  1. Control lever assembly – Torque retaining nut to 8 lb‑ft; apply thread sealant tape on stem threads.
  2. O‑ring set – Replace with EPDM rings sized 1.50 in ID × 2.00 in OD every 12 months.
  3. Spray diverter cartridge – Inspect silicone washer for cracks; replace if diameter falls below 0.95 in.
  4. Aerator insert – Standard 55/64″–27 male thread; remove debris bi‑monthly to maintain 1.5 gpm flow rate.
  • Follow color‑coded flow paths on the blueprint: red for hot, blue for cold, green for mixed.
  • Use a calibrated pressure gauge to verify 60–80 psi at inlet fittings before finalizing connections.
  • Schedule preventative servicing every 18 months to swap out internal seals and check for corrosion on mounting shank and escutcheon. Keep a record of serial number and schematic revision date (e.g., Rev 3.2, issued 03/2024) for ordering exact replacement components.
