Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to remove ions, unwanted molecules, and larger particles from drinking water. This system is widely used in residential, commercial, and industrial applications to improve the quality of water.

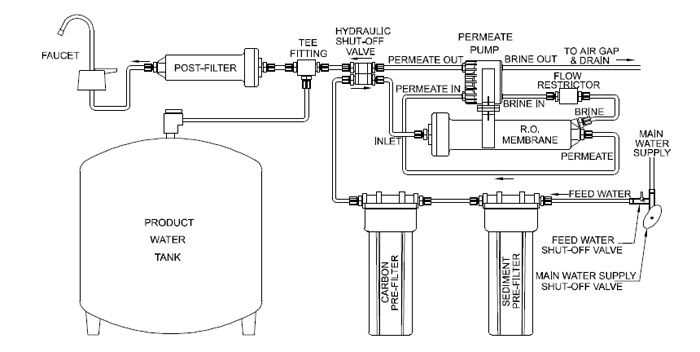

The diagram of a reverse osmosis system illustrates the various components and their functions in the purification process. The system consists of a pre-filter, a sediment filter, a carbon filter, a reverse osmosis membrane, a storage tank, and a post-filter.
The pre-filter, usually a sediment filter, removes larger particles such as dirt, sand, and rust from the water. This step helps protect the reverse osmosis membrane from clogging or damage. Next, the water passes through a carbon filter, which removes chlorine, odors, and other chemicals that can affect the taste and smell of the water.
The heart of the reverse osmosis system is the reverse osmosis membrane. This thin, semi-permeable membrane allows water molecules to pass through while blocking larger particles, ions, and impurities. As the water moves through the membrane, contaminants are left behind, and only clean water molecules continue to the storage tank.
Reverse Osmosis System: Understanding the Diagram and its Components
In order to fully understand how a reverse osmosis system works, it is important to familiarize yourself with its components as shown in the diagram. The diagram depicts a simplified representation of a typical reverse osmosis system, showcasing each key element and its role in the process.
1. Feed water: The reverse osmosis system takes in feed water, which can come from various sources such as a well, tap water, or a water supply line. The quality of the feed water can greatly impact the overall performance and efficiency of the system.
2. Pre-filter: The pre-filter is the first line of defense in the reverse osmosis system. It is responsible for removing larger particles and sediments, such as dirt, sand, and rust, from the feed water. This helps to prevent clogs and damage to the delicate membranes.
3. High-pressure pump: The high-pressure pump is a crucial component of the reverse osmosis system. It applies the necessary pressure to push the feed water through the membranes, allowing only pure water molecules to pass while leaving behind impurities.
4. Membranes: The membranes are the heart of the reverse osmosis system. They consist of thin layers of material with microscopic pores that only allow water molecules to pass through. As the feed water is pushed through the membranes under high pressure, contaminants such as dissolved salts, minerals, and bacteria are trapped and flushed away.
5. Permeate water: The purified water that passes through the membranes is known as permeate water. It is collected and stored in a clean water tank for later use, such as drinking, cooking, or other household applications.
6. Concentrate: The remaining concentrated solution, also known as reject water or brine, contains the impurities that were removed from the feed water. This concentrate is typically discharged or can be recycled depending on the specific setup of the reverse osmosis system.
Understanding the diagram of a reverse osmosis system provides insight into the complex process involved in purifying water. Each component plays a crucial role in ensuring the production of high-quality, purified water. By familiarizing yourself with these components, you can better appreciate the efficiency and effectiveness of reverse osmosis systems in providing clean, safe water.
What is a Reverse Osmosis System?
A reverse osmosis system is a water purification technology that uses a semipermeable membrane to remove impurities and contaminants from water. It is a highly effective method for purifying water, producing clean and safe drinking water for various applications.
The reverse osmosis process works by applying pressure to the water to force it through a semipermeable membrane. This membrane has extremely small pores that only allow water molecules to pass through, leaving behind larger particles, contaminants, and impurities. The result is water that is free from contaminants such as bacteria, viruses, dissolved salts, pesticides, and heavy metals.
The reverse osmosis system typically consists of several stages. The first stage is a pre-filtration stage, where larger particles, sediment, and debris are removed to protect the membrane. The second stage is the actual reverse osmosis process, where the water is forced through the semipermeable membrane. After that, the water may go through additional post-filtration stages to further remove any remaining impurities and enhance the taste and quality of the water.
Reverse osmosis systems are commonly used in homes, businesses, and industries to provide clean, purified water for drinking, cooking, and various other applications. They are also used in desalination plants to turn seawater into fresh drinking water. The efficiency and effectiveness of reverse osmosis systems make them a popular choice for water purification, ensuring access to safe and clean water in different environments.
The Diagram of a Reverse Osmosis System: Key Components and their Functions
A reverse osmosis system is a water purification process that uses a partially permeable membrane to remove impurities from water. The process involves applying pressure to the impure water side of the membrane, causing the water molecules to pass through the membrane while leaving the impurities behind. Understanding the diagram of a reverse osmosis system is essential to comprehend its working and the functions of its key components.
The key components of a reverse osmosis system include:
- Pre-filter: The pre-filter is the first stage of the reverse osmosis system. It is responsible for removing large particles, sediment, and other impurities such as rust and sand from the water. The pre-filter helps protect the delicate reverse osmosis membrane from damage.
- Reverse osmosis membrane: The reverse osmosis membrane is the heart of the system. It is a semi-permeable membrane that allows water molecules to pass through while blocking impurities such as dissolved salts, heavy metals, and organic compounds. The membrane effectively removes contaminants, making the water clean and purified.
- Post-filter: The post-filter acts as a final polishing stage in the reverse osmosis system. It further removes any remaining impurities that may have passed through the membrane. The post-filter enhances the taste and quality of the purified water.
- Storage tank: The storage tank is where the purified water is stored after passing through the reverse osmosis system. It ensures a constant supply of clean water is available for immediate use.
- Faucet: The faucet is the outlet where the purified water is dispensed. It is typically a separate faucet installed on the sink or countertop specifically for the reverse osmosis system.
- Flow restrictor: The flow restrictor regulates the flow of water through the reverse osmosis system. It helps maintain the proper pressure required for the efficient functioning of the system.
- Check valve: The check valve is a one-way valve that ensures water flows in the correct direction through the different stages of the reverse osmosis system. It prevents backflow and maintains the integrity of the system.
Overall, understanding the diagram of a reverse osmosis system and the functions of its key components is crucial in appreciating the technology and its ability to provide clean and purified water for various applications.
Pre-filtration Stage
In a reverse osmosis system, the pre-filtration stage is the first step in the water purification process. It involves the use of various filters to remove particulate matter, sediment, and other impurities from the water before it goes through the reverse osmosis membrane.
One of the key components of the pre-filtration stage is the sediment filter, which is typically made of spun polypropylene. This filter is designed to capture larger particles, such as sand, silt, and rust, that may be present in the water. By removing these particles, the sediment filter helps protect the reverse osmosis membrane from damage and prolongs its lifespan.
Another important filter used in the pre-filtration stage is the activated carbon filter. This filter is made of activated carbon, which has a high surface area that can effectively adsorb contaminants such as chlorine, volatile organic compounds (VOCs), and other chemicals that may affect the taste and odor of the water. The activated carbon filter helps improve the overall quality of the water and enhances the performance of the reverse osmosis membrane.
Additionally, the pre-filtration stage may also include other filters, such as a micron filter or a UV filter, depending on the specific needs and requirements of the reverse osmosis system. These filters further refine the water by removing smaller particles and disinfecting it, ensuring that the final product is clean, clear, and safe to consume.
Key Phrases:
- Pre-filtration stage
- Water purification process
- Filters
- Particulate matter
- Sediment filter
- Spun polypropylene
- Sand, silt, and rust
- Reverse osmosis membrane
- Activated carbon filter
- Chlorine and VOCs
- Taste and odor
- Micron filter
- UV filter
- Disinfection
- Final product
Reverse Osmosis Membrane
The reverse osmosis membrane is a key component in the reverse osmosis system. It is a semi-permeable membrane that allows water molecules to pass through while blocking the passage of dissolved solids, ions, and other contaminants. The membrane is made up of thin layers of material, typically composed of polymers such as polyamide or cellulose acetate. These layers are arranged in a spiral-wound configuration to maximize surface area and optimize the filtration process.
The reverse osmosis membrane works by applying pressure to the feed water, forcing it against the membrane surface. This pressure creates a concentration gradient, with the concentrations of contaminants being higher on one side of the membrane than the other. Water molecules are small enough to pass through the membrane’s microscopic pores, while larger molecules and ions are effectively rejected. This selective permeability allows the reverse osmosis membrane to effectively remove a wide range of contaminants, including dissolved salts, heavy metals, bacteria, and viruses.
The performance of a reverse osmosis membrane is typically measured in terms of its rejection rate, which indicates the percentage of contaminants that are removed from the water. Higher rejection rates are generally desirable, as they indicate a more efficient filtration process. However, it’s important to note that the rejection rate of a membrane can be influenced by various factors, including the quality of the feed water, the operating conditions, and the membrane’s age and condition.
In order to maintain the performance of the reverse osmosis membrane, regular cleaning and maintenance are necessary. This involves flushing the membrane with clean water to remove any accumulated debris or scaling, as well as periodically replacing the membrane when it becomes fouled or worn out. By properly caring for the reverse osmosis membrane, the system can continue to provide high-quality purified water for a long time.
Post-filtration and Polishing Stage
After the water passes through the reverse osmosis membrane, it still may contain impurities and contaminants. To ensure the water is safe for consumption, it goes through a post-filtration and polishing stage. This stage consists of additional filtration processes that further remove any remaining impurities and improve the taste and clarity of the water.
One of the common post-filtration methods used is activated carbon filtration. Activated carbon is a highly porous material that effectively adsorbs various organic compounds, chlorine, and other chemicals. It helps to remove any unpleasant odors and tastes in the water, making it more palatable for drinking and cooking.
Another technique used in the post-filtration stage is ultraviolet (UV) disinfection. UV light is employed to kill or deactivate any remaining microorganisms that may have passed through the reverse osmosis membrane. The high-energy UV rays damage the DNA of bacteria, viruses, and other pathogens, preventing them from reproducing and causing harm.
The post-filtration and polishing stage is crucial in ensuring the water produced by the reverse osmosis system meets the required water quality standards. It helps to remove any residual contaminants and improve the overall taste and purity of the water. With these additional filtration processes, the water becomes suitable for drinking and various other applications, providing a reliable and healthy source of clean water.
Storage Tank
The storage tank is an essential component of the reverse osmosis system. It serves as a reservoir for the purified water produced by the system. The tank is typically made of durable materials such as stainless steel or food-grade plastic to ensure the water remains clean and safe for consumption.
One of the key features of the storage tank is its capacity. It is important to choose a tank size that can meet the demands of the household or facility. Larger tanks can hold more water, allowing for a continuous supply, while smaller tanks may require more frequent refills.
The storage tank is usually equipped with a pressure valve to maintain the desired pressure levels within the system. This valve is responsible for regulating the flow of water into and out of the tank, ensuring a consistent water supply. Additionally, the tank may be equipped with a shut-off valve to control the flow of water during maintenance or repairs.
In some cases, the storage tank may also include a disinfection system or UV light to prevent the growth of bacteria and other microorganisms. This helps to ensure that the stored water remains safe and free from contaminants.
Overall, the storage tank plays a crucial role in the reverse osmosis system by providing a reliable and convenient storage solution for the purified water. It helps to ensure a continuous supply of clean and safe water for various applications, including drinking, cooking, and other household or industrial needs.
Faucet and Delivery System
The faucet and delivery system is the final component of a reverse osmosis system. It is responsible for dispensing the purified and filtered water to the user.
The faucet is typically installed on the sink, providing easy access to the purified water. It is designed to be user-friendly, with a lever or button for activating the flow of water. Some faucets may also have additional features, such as a separate spout for dispensing non-filtered water.
The delivery system includes a series of tubes and fittings that connect the filtration unit to the faucet. These tubes are made of food-grade materials to ensure the safety and quality of the water. The delivery system is designed to deliver water from the filtration unit to the faucet efficiently and without any leakage.
In summary, the faucet and delivery system play a crucial role in the reverse osmosis system by providing a convenient and reliable way to access purified and filtered water. It ensures that the water is delivered safely and efficiently to the user, allowing them to enjoy the benefits of clean and great-tasting water.
