For optimal performance and longevity of your zero-turn mower, understanding the configuration of its drive components is essential. The 50-inch Z-Turn mower features a complex array of pulleys and cords, crucial for maintaining smooth operation and ensuring proper power distribution to the wheels and blades.
It’s important to regularly inspect the power transmission system to prevent issues like slippage or misalignment, which can lead to inefficient cutting or even damage to the machine. Pay attention to the routing of the system and the tension of the cables, as improper installation can cause premature wear.

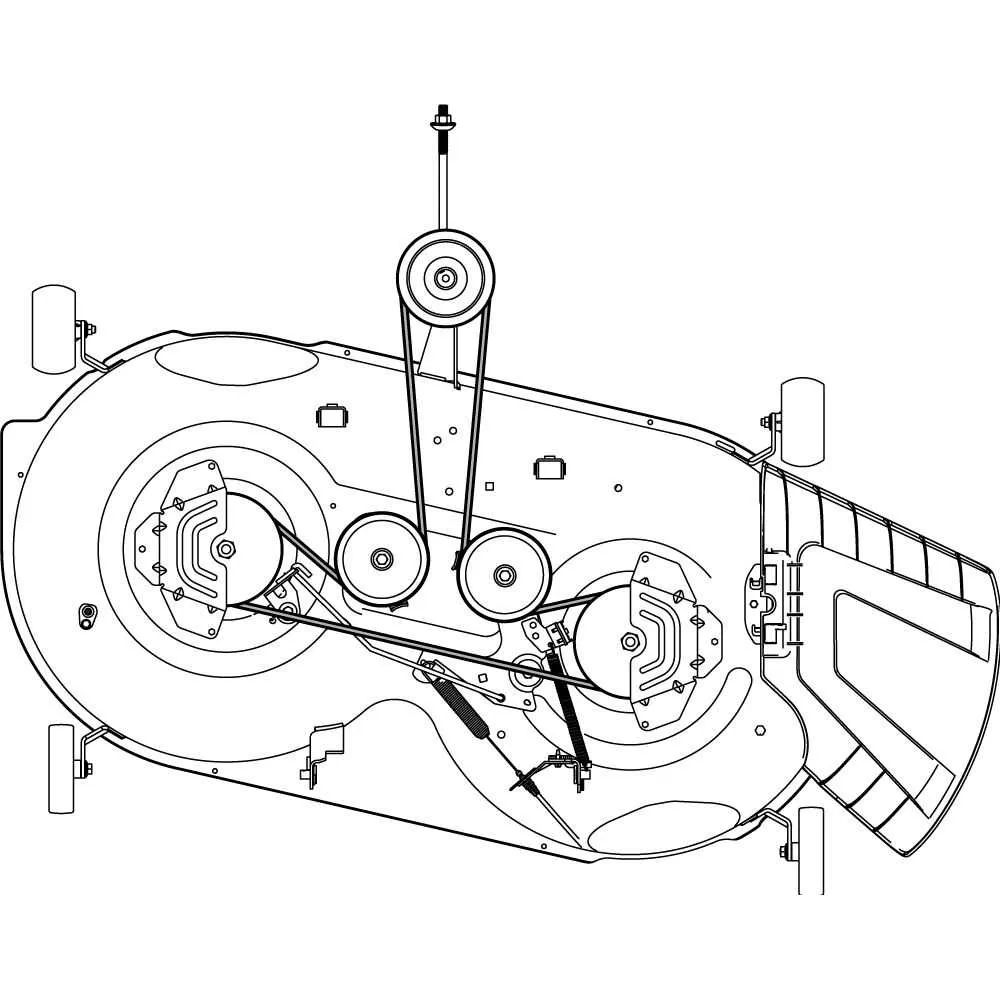

To help with this, we have provided a detailed schematic of the mower’s drive configuration, showing the proper sequence and orientation of the components. Follow this guide to make sure that each part is properly installed, ensuring the mower operates at peak efficiency.
Maintenance Instructions for Z Force 50 Drive Components
Ensure the proper routing of the drive system parts for optimal performance. Follow these steps for accurate installation and maintenance:
- Start by examining the pulley system and identifying the routing path for the main drive components.
- Align the drive component with the corresponding pulleys and verify correct tension on the system.
- Double-check the paths for the primary and secondary parts to ensure they match the manufacturer’s specifications.
- Regularly inspect the pulleys for any wear or damage that could disrupt the smooth operation of the system.
- For proper performance, ensure the alignment of each drive piece remains within tolerance limits.
It is essential to replace any worn-out parts with authentic replacements to avoid performance degradation. Ensure the installation follows the outlined paths for the system to function at its highest efficiency.
For additional guidance, refer to the model-specific service manual for detailed part numbers and routing schematics.
How to Identify the Correct Size for Z Force 50 Mower
To determine the proper dimensions for the mower’s drive component, check the model specifications or refer to the operator’s manual for precise measurements. Each machine uses a specific length and width for its rotating element, and the right size ensures optimal performance.
First, measure the inner and outer circumference of the rotating section and compare it with manufacturer-recommended specs. A standard width for the rotating part is typically between 1 to 1.5 inches, with lengths ranging from 40 to 50 inches, depending on the model. Cross-check these values against the available replacement options.
Make sure to select a replacement that matches these dimensions exactly. If unsure, contact a certified dealer for assistance. You can also consult online parts catalogs, which will list the recommended replacements for the specific mower series.
In addition, keep in mind that the component should fit snugly on pulleys without excessive tension, as this can lead to premature wear or operational failure.
Step-by-Step Guide to Replacing the Drive Component on Z Force 50
Start by raising the mower deck to its highest setting. Secure the machine with a jack to avoid movement during the process. Disconnect the battery to ensure safety.
Next, remove the deck from the mower frame. Use a socket wrench to detach the mounting bolts and lift the deck carefully. Keep track of all fasteners to avoid losing them.
Once the deck is off, locate the component that needs replacement. Use a wrench to loosen the tensioning mechanism and remove any obstacles around the component. This will allow you to slide it off with minimal resistance.
Before installing the new part, ensure that the pulleys are free of debris or damage. Inspect for any signs of wear that could affect performance. Clean the area to ensure smooth operation after installation.
Position the new part over the pulleys and carefully route it according to the manufacturer’s instructions. Align it properly and ensure the tensioning system is adjusted to the recommended settings. Tighten all bolts securely to avoid slipping or malfunction.
Reassemble the deck and reconnect the battery. Test the mower by turning it on and engaging the drive system. Check for any unusual sounds or issues before use.
Troubleshooting Common Belt Issues in Z Force 50
Check for proper tension first. If the drive component is slipping or making noise, it’s often due to insufficient tightness. Adjust the tension using the tensioner pulley, ensuring it’s within the manufacturer’s specified range.
If you notice uneven wear, inspect for misalignment of the drive system. A pulley that’s off-center or worn out could cause the surface of the drive mechanism to degrade prematurely. Align all pulleys and replace any damaged parts immediately.
When the system stalls or doesn’t engage, the issue may lie with the idler pulleys or a faulty spring. The spring should have enough tension to keep the idler pulley in place, allowing smooth operation. A loose or broken spring will result in ineffective engagement.
For poor traction or sluggish response, check for debris buildup on the pulleys and related components. Grass, dirt, or dust can interfere with the movement, leading to performance issues. Regular cleaning and maintenance will prevent this problem.
If you hear unusual sounds, such as squeaking or grinding, inspect for a damaged or worn-out part in the system. A grinding noise often indicates a bearing failure or a part that’s about to fail. Replace worn parts immediately to avoid further damage.
Lastly, if the drive system isn’t operating at full power, ensure that all connections are secure. Loose or disconnected parts can lead to a loss of efficiency, hindering the mower’s ability to function properly. Tighten or replace any problematic connections.
