Begin by identifying the control valve–this is typically located beneath the handle and regulates water temperature and pressure. If there’s a leak near the base, the cartridge or washer inside this mechanism may need replacement. Most models use a ceramic disk or compression-style insert, accessible by unscrewing the top cap.
Next, examine the spout assembly. This curved fixture delivers the flow and often houses an aerator at the tip. Low pressure or irregular spray usually indicates a clogged mesh screen, which can be unscrewed and cleaned. Some designs also include a diverter valve within the neck to redirect flow to a side sprayer.
Pay attention to the mounting hardware beneath the sink. A threaded shank, secured by a metal or plastic nut, keeps the fixture stable. If the unit wobbles, tighten the retaining ring with a basin wrench. For pull-down variations, check the hose guide and counterweight mechanism, ensuring smooth retraction and no visible kinks.
Finally, inspect supply line connectors. These flexible tubes, linking the shutoff valves to the base inlets, often have compression fittings or quick-connect adapters. Drips here typically result from worn-out rubber gaskets or improper torque during installation.
Efficient Identification of Water Fixture Components
Start by removing the handle using a hex key to access the internal cartridge. Typically secured with a retaining nut, the cartridge regulates flow and temperature; replace it if leaks persist. Underneath, a rubber washer and a brass seat ensure watertight sealing–inspect both for wear or corrosion.
Spout O-rings often cause side leaks; pull the spout upward to reveal them, and apply plumber’s grease during reassembly. For pull-out sprayers, check the check valve and weight position on the hose to maintain retraction and prevent backflow.
Mounting hardware under the sink includes a metal bracket, lock nut, and horseshoe washer–tighten these if the unit wobbles. Ensure the hot and cold supply lines are connected firmly to the valve body and check for any signs of cross-threading.
Refer to the model-specific exploded view for correct order during reassembly. Keep all screws, clips, and small fittings organized to avoid mismatches or damage during replacement.
Identifying Key Components in an American Standard Kitchen Faucet
Begin by locating the cartridge–this cylindrical insert controls water flow and temperature. Remove the handle using a hex wrench to expose it. Inspect for wear or buildup, which often causes leaks or stiffness.
Next, examine the aerator at the tip of the spout. Unscrew it counterclockwise and check for sediment. A clogged mesh screen here can reduce water pressure significantly.
Look beneath the sink for the supply line connectors. These braided hoses link the fixture to your home’s plumbing. Ensure they are not kinked or leaking at the joints.
Check the mounting hardware. A mounting nut or bracket secures the assembly to the sink deck. Tighten if the unit wobbles during operation.
Don’t overlook the valve seats. These sit beneath the cartridge and can erode over time, leading to persistent drips. Use a flashlight to inspect them closely for pitting or damage.
Finally, identify the diverter if your setup includes a side sprayer. This small valve redirects flow when the sprayer trigger is engaged. A malfunction here can result in weak output or cross-leakage between outlets.
How to Read and Interpret a Kitchen Faucet Parts Diagram

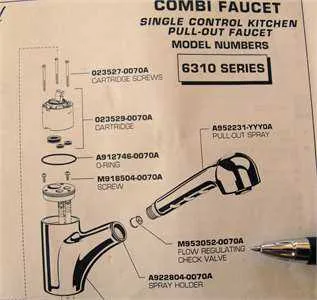

Begin by locating the exploded view illustration, typically labeled with numbered callouts. These identifiers correspond to a legend or key that lists each item’s name and part number.
- Find the water inlet assemblies: Usually located at the base, these regulate hot and cold flow. Look for compression fittings, nuts, and washers.
- Identify the valve cartridge: Central to the control handle, this cylindrical element manages temperature mixing and flow rate. Its orientation is crucial during reassembly.
- Spot the spout connector: This linking component channels water to the outlet. Check for O-rings or gaskets that ensure a watertight seal.
- Trace the mounting hardware: Underneath the counter, locknuts and brackets secure the fixture. Verify correct sequence and position of washers and seals.
- Note any diverter mechanism: Found in multi-outlet models, this redirects water between outlets. Spring-loaded pins or plungers typically indicate its location.
Ensure all rubber and plastic seals are noted for wear-prone zones. Use part codes from the legend to order exact replacements or confirm compatibility.
Common Replacement Parts and Their Placement in the Diagram
Begin with the cartridge–typically located beneath the handle–it controls water flow and temperature. When malfunctioning, symptoms include leaking or difficulty adjusting pressure. Identify it as item #5 in most schematics.
Next, check the aerator, found at the tip of the spout. It regulates stream consistency and minimizes splashing. Often labeled as #14, this component unscrews easily for cleaning or swap-out.
The O-ring, marked #9, sits between the spout base and the main body, sealing internal connections to prevent drips. Wear or cracks lead to water escaping around the base.
Supply line connectors, identified as #17 and #18, attach beneath the sink. Damage here often results in under-sink pooling. Match thread type and size during replacement.
For side-spray models, the diverter valve–commonly #11–is embedded within the main body. If water doesn’t redirect properly to the hose, this mechanism likely needs attention.
