When designing a reverse osmosis filtration layout, ensuring each phase is clearly defined and optimized is crucial for system efficiency. The first step involves pre-filtration, where large particles are removed through a sediment filter, reducing the wear on more sensitive components. Following this, activated carbon filters are used to remove chlorine and organic compounds that could damage the membrane in the subsequent phase.
The third part of the process is where water is passed through the membrane, typically made from a semi-permeable material. Here, contaminants such as heavy metals, salts, and other dissolved solids are separated from the purified water. After this, the fourth phase uses a post-carbon filter to further remove any remaining taste or odor, ensuring the water quality is optimal for consumption.
Finally, an optional UV filter can be added to eliminate any microorganisms that may have passed through the previous stages. Each component should be carefully selected based on water quality and specific filtration goals. By customizing the setup, the overall filtration process becomes more reliable and efficient, ensuring long-term operation and minimal maintenance costs.
5-Filter Reverse Osmosis Setup Overview
When selecting a reverse osmosis setup, consider the following essential filtration steps to ensure optimal water purification:
- Pre-Filter: The first layer typically involves sediment filtration. This stage removes larger particles, such as dirt, sand, and rust, preventing them from damaging subsequent filters.
- Carbon Filter: Activated carbon eliminates chlorine, odors, and volatile organic compounds (VOCs), improving taste and protecting the membrane from degradation.
- Reverse Osmosis Membrane: The heart of the process, this semi-permeable membrane removes dissolved solids, heavy metals, and harmful microorganisms. It’s crucial to monitor and replace this filter periodically.
- Post-Carbon Filter: After passing through the membrane, water undergoes a final pass through a carbon filter. This ensures any remaining impurities are absorbed, further improving the water’s taste.
- Mineral Filter: This final phase reintroduces essential minerals like calcium and magnesium, ensuring the water not only tastes better but also provides beneficial nutrients.
To maintain high water quality, regularly check and replace filters according to the manufacturer’s schedule. Also, ensure the flow rate and water pressure are optimal for each filter, as these factors affect overall performance.
Understanding the Components of a 5 Stage RO System
Prioritize the use of high-quality sediment filters as the first line of defense against rust, sand, and silt. These particles quickly clog finer membranes if not removed early, reducing efficiency and lifespan.
Install a granular activated carbon (GAC) cartridge next. Its primary role is to eliminate chlorine, which degrades the thin-film composite membrane used in reverse osmosis. Verify its iodine number rating (minimum 800 mg/g) to ensure effective adsorption.
The third element should be a carbon block filter. Unlike GAC, the block structure provides finer filtration, capturing smaller organic molecules, VOCs, and lingering chlorine by-products. Ensure it meets NSF/ANSI Standard 42 for chlorine taste and odor reduction.
In the core filtration membrane, select one with at least 98% TDS rejection rate and a micron rating of 0.0001 µm. Thin-film composite (TFC) membranes are preferable due to their chemical resistance and long service life, especially when operating between 50–100 psi.
Finalize the setup with a post-carbon inline filter, commonly made from coconut shell carbon. This component polishes the water, removing any residual taste or odor from the storage tank, ensuring clean output at the faucet.
| Component | Function | Recommended Specification |
|---|---|---|
| Sediment Filter | Removes physical debris | 5 microns, polypropylene |
| GAC Cartridge | Chlorine & chemical removal | Iodine number ≥ 800 mg/g |
| Carbon Block | Organic contaminant reduction | NSF/ANSI 42 certified |
| RO Membrane | TDS and heavy metal removal | 0.0001 µm, TFC, 98%+ rejection |
| Post Carbon Filter | Final taste & odor polishing | Coconut shell, inline type |
Step-by-Step Process Flow in a 5 Stage Reverse Osmosis System
Begin by ensuring the sediment filter is securely installed as the first line of defense. It captures particles larger than 5 microns, such as rust, dirt, and sand, protecting the rest of the filtration setup from premature clogging.
The second filtration point typically utilizes a granular activated carbon (GAC) medium. This segment reduces chlorine, volatile organic compounds (VOCs), and unpleasant odors, preventing membrane degradation and improving taste.
Next, a carbon block filter refines the process by removing residual chlorine and finer chemical contaminants. This layer enhances chemical absorption efficiency thanks to its higher surface area compared to GAC.
The semipermeable membrane follows. It eliminates up to 99% of dissolved solids, including lead, arsenic, fluoride, nitrates, and other heavy metals. Water is forced through under pressure, leaving impurities behind as waste.
The final polishing filter, usually post-carbon, enhances flavor and removes any remaining tastes or odors before dispensing. It ensures the output is clean, crisp, and suitable for direct consumption.
Common Issues and Maintenance Tips for a 5 Stage RO System
Replace the sediment filter every 6–12 months to prevent clogging that reduces flow and stresses downstream components. A pressure drop of more than 10 psi across the filter is a clear indicator for replacement.
Monitor TDS (Total Dissolved Solids) levels weekly using a digital meter. If the reading exceeds 10% of the input water’s TDS, the reverse osmosis membrane likely requires replacement.
Flush the carbon pre-filters every 6 months to maintain chlorine removal efficiency. Residual chlorine damages the membrane and shortens its lifespan.
Check the O-ring seals during each filter change. Any cracks or misalignments can cause leaks and allow unfiltered water to bypass purification stages.
Inspect the automatic shut-off valve annually. If the storage tank doesn’t stop filling, the valve may be stuck or faulty, leading to continuous drain flow and wasted water.
Sanitize the reservoir and tubing every 12 months using a diluted household bleach solution (1 tablespoon per gallon of water). Rinse thoroughly to remove all traces of disinfectant before reuse.

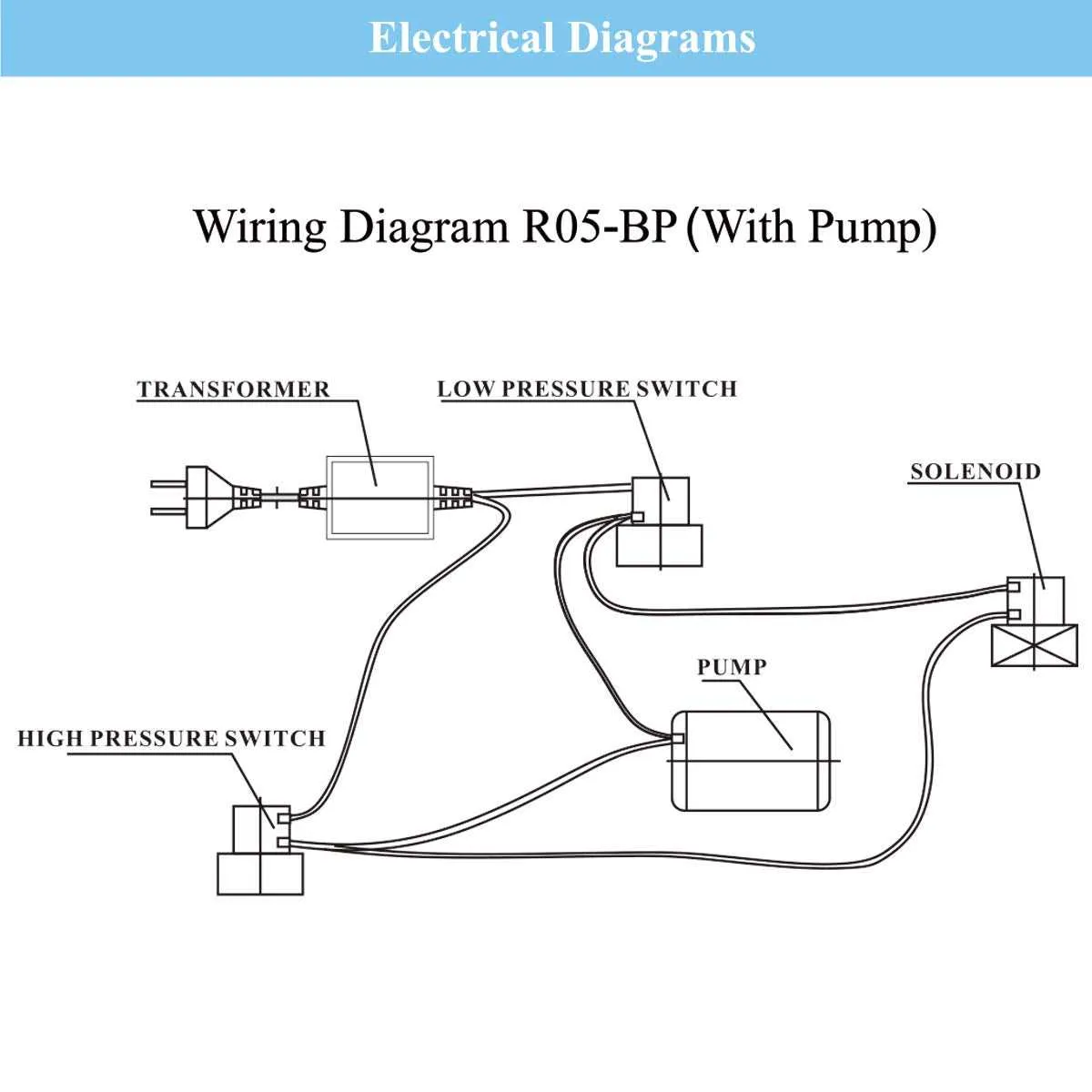

Listen for abnormal pump noises or excessive cycling. These symptoms often point to a faulty pressure switch or air pressure imbalance in the storage tank.
