Start by inspecting the thermal switch located on the cylinder head; it triggers the airflow module based on coolant temperature. Use a multimeter to check continuity: resistance should drop significantly once the fluid temperature exceeds 200°F. Replace the switch if no signal is sent when hot.
The connector near the radiator often suffers from corrosion. Disconnect it and examine the pins for oxidation or looseness. Apply dielectric grease and reconnect. If the motor still fails to engage, trace the harness back toward the fuse block behind the dashboard panel.
Locate the 10A fuse labeled for heat management; a blown fuse usually indicates a short in the ground path or excessive load. Check the inline relay mounted beneath the seat–terminals should receive 12V when the key is in the ON position and the engine is warm.
If voltage reaches the actuator but there’s no response, remove the motor housing and test it directly with jumper wires from the battery. Ensure the impeller spins freely; jammed blades or burnt brushes warrant replacement. Use a dedicated circuit tester to confirm the path from the relay output to the ground point under the chassis frame.
Inspect the loom for chafing near the lower A-arm, where movement can wear through insulation. Reinforce any exposed wires with heat-shrink tubing and secure with zip ties. Reassemble all components and monitor temperature behavior during idle and low-speed operation.
Component Layout and Wiring Path for Engine Temperature Regulation Circuit
Start by inspecting the thermal switch mounted on the left side of the radiator. This sensor triggers activation once coolant temperature exceeds approximately 200°F.
- Check continuity between sensor terminals when heated above trigger point using a multimeter; replace if circuit remains open.
- Power is routed from a 10A fuse located in the fuse box under the seat–confirm voltage presence with ignition ON.
- The relay is positioned near the battery compartment; verify terminal 30 receives constant power and terminal 86 is energized when the sensor closes the ground circuit.
- Terminal 87 sends power to the motor harness–inspect for corrosion or damage at the coupler behind the radiator shroud.
Follow this order for testing:
- Apply 12V directly to the blower motor using jumper wires; if it spins freely, the unit is functional.
- If unresponsive, replace the motor; if responsive, continue diagnostics upstream.
- Jump terminals 30 and 87 on the relay socket–this bypasses the trigger signal. If the fan activates, replace the relay.
- If the circuit still fails, trace continuity from relay output to motor connector, checking for wire breaks.
Use OEM wiring colors for identification:
- Red/black – power from fuse to relay
- Blue – switched power from relay to motor
- Black – ground return from motor
- Green – ground side of thermal switch
Wiring connections between cooling fan motor, relay, and temperature sensor
Begin by linking the motor’s positive lead directly to the output terminal of the relay (commonly marked as terminal 87). Ground the motor’s negative wire securely to the chassis to ensure uninterrupted operation.
Connect terminal 30 of the relay to a fused 12V power source–preferably via a dedicated fuse rated at 20A. Use appropriate gauge wire (minimum 12 AWG) to minimize voltage drop under load.
The relay coil should receive activation current from the sensor: run a wire from the sensor’s signal output to terminal 85. Ensure that the sensor is mounted near the radiator outlet and reacts around 200°F (93°C). Terminal 86 connects to switched ignition voltage; this prevents the circuit from activating with the key off.
Use weatherproof connectors and route wires away from heat sources and moving components. Secure all paths with clamps or loom. A multimeter should confirm continuity and voltage before reassembly.

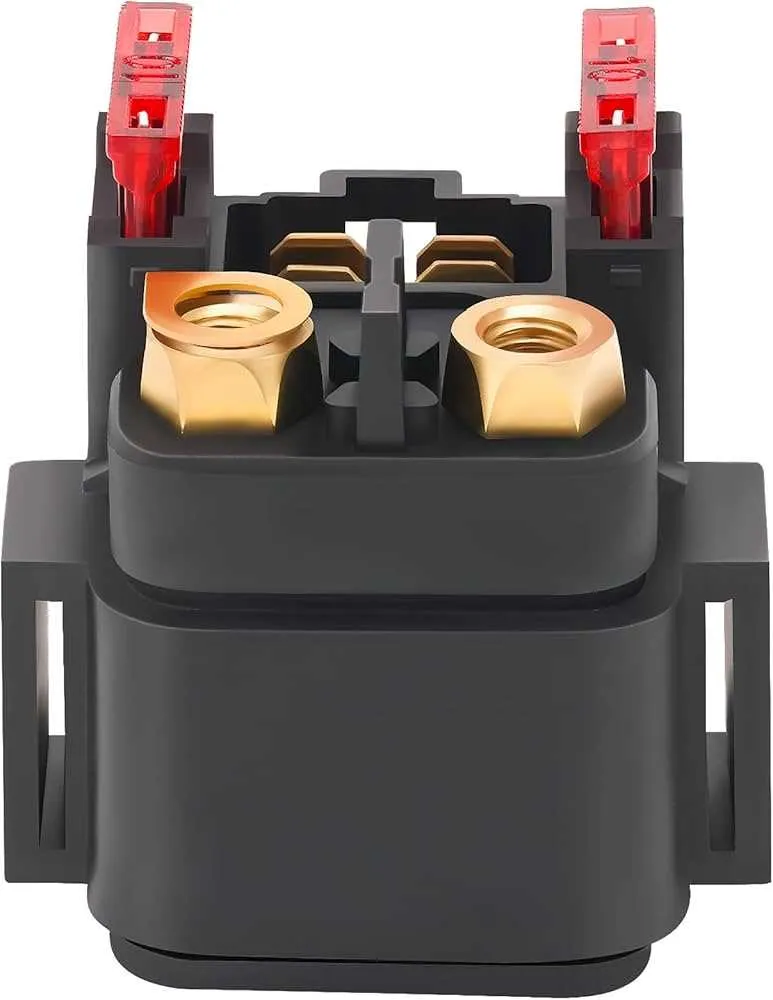

How the fan relay functions within the YXR660 cooling circuit
Start by checking if the control unit provides ground to the relay coil when the temperature switch closes. This signal triggers the relay to connect battery voltage to the motor circuit. Without proper grounding, the contact points remain open and airflow does not engage.
The switching device receives 12V at one terminal from the fuse-protected supply. When activated, it bridges this voltage to the output terminal, feeding the blower’s positive lead. The negative side of the motor is typically grounded to the chassis near the radiator shroud.
If the rotating element does not operate, verify continuity across the relay’s coil pins. Resistance should range between 60–100 ohms. Infinite resistance or zero indicates internal failure. Also inspect the socket for corrosion or loose terminals, which can cause intermittent response under vibration.
To bench test, apply 12V across the relay’s activation terminals while measuring voltage at the output lug. A functioning unit will produce a clear click and show battery voltage on the output pin. Failure to switch suggests contact pitting or coil degradation.
Always ensure the thermosensor is calibrated, as a misreading sender may never prompt the relay. The entire circuit depends on timely ground from the sensor to initiate the chain that drives airflow activation.
Common Malfunctions Impacting Motor Operation and Key Diagnostic Steps
Check the fuse first. A blown fuse is a frequent cause of the motor not spinning. Inspect the inline fuse located near the battery connection for continuity using a multimeter.
Verify the relay functionality. The relay controls current flow to the blower. Listen for a clicking sound when the ignition is on; absence indicates a faulty relay requiring replacement.
Inspect wiring harness connections. Loose or corroded terminals along the power and ground lines often cause intermittent or no operation. Clean contacts and secure connectors firmly.
Test the temperature sensor or switch. A defective thermal switch can prevent activation. Use an ohmmeter to measure resistance changes at different temperatures to confirm sensor condition.
Examine the motor itself. If voltage is present but rotation is absent, the internal windings may be damaged or brushes worn out. Bench test the unit or replace as needed.
Assess the control module. On models equipped with an electronic controller, faults here can disrupt motor actuation. Scan for error codes or verify output signals with diagnostic tools.
Following these targeted checks allows pinpointing causes quickly and reduces unnecessary part replacements.
