Installing an electronic speedometer in your vehicle can be a game-changer. Not only does it provide accurate readings of your vehicle’s speed, but it also adds a modern touch to the dashboard. However, wiring a VDO electronic speedometer can be a daunting task for many car enthusiasts. That’s why we have created this comprehensive guide to help you navigate through the wiring process with ease.
First and foremost, it’s crucial to understand the basic components of a VDO electronic speedometer. These typically include a speedometer head, a sensor, and a power source. The speedometer head is the main display unit that shows the speed readings. The sensor, on the other hand, is responsible for measuring the rotation speed of the vehicle’s driveshaft or wheel. Finally, the power source, usually the vehicle’s battery, supplies the necessary electricity to the speedometer.
When it comes to wiring the speedometer, it’s crucial to follow the manufacturer’s instructions. These instructions will provide you with a detailed diagram of the wiring connections and indicate the proper gauge of wire to use. It’s essential to use the correct wire gauge to ensure the speedometer functions properly and avoids any electrical issues. Additionally, make sure to secure the wiring harness away from any moving parts or excessive heat to prevent damage.
In conclusion, wiring a VDO electronic speedometer may seem overwhelming at first, but with the right guidance and attention to detail, it can be a straightforward process. Following the manufacturer’s instructions, understanding the basic components, and using the correct wire gauge will help ensure a successful installation. So, roll up your sleeves, grab your tools, and get ready to upgrade your vehicle’s speedometer with an electronic marvel.
Why choose Vdo electronic speedometer?
When it comes to electronic speedometers, Vdo is a trusted and reliable brand that offers a range of benefits and features. Whether you are a professional mechanic or an avid car enthusiast, there are several reasons why you should choose Vdo for your electronic speedometer needs.
Accurate and precise: Vdo electronic speedometers are known for their accuracy and precision. They use advanced sensor technology to provide precise readings of your vehicle’s speed, ensuring that you always have an accurate gauge of how fast you are going. This can be particularly important for safety purposes, as well as for monitoring fuel efficiency and optimizing performance.
Easy installation: Vdo electronic speedometers are designed to be easy to install, even for those with limited technical knowledge or experience. With clear instructions and user-friendly interfaces, you can quickly and efficiently install the speedometer without any hassle or complications.
Durable and reliable: Vdo is known for producing high-quality and durable products, and their electronic speedometers are no exception. Built to withstand the rigors of daily use and harsh driving conditions, these speedometers are designed to last for years without losing accuracy or functionality. This means that you can rely on your Vdo speedometer to perform consistently and dependably, no matter where the road takes you.
Wide range of options: Vdo offers a wide range of electronic speedometers to suit different vehicle types and preferences. Whether you need a speedometer for a car, truck, motorcycle, or boat, you can trust that Vdo has the perfect solution for you. From basic models to more advanced options with additional features, you can choose the speedometer that best fits your needs and budget.
Trusted brand: With over 90 years of experience in the industry, Vdo is a trusted and reputable brand that is known for its commitment to quality and customer satisfaction. When you choose Vdo, you can be confident that you are investing in a reliable product that will meet your needs and exceed your expectations.
- Accurate and precise readings
- Easy installation
- Durable and reliable
- Wide range of options
- Trusted brand
If you are in need of an electronic speedometer, Vdo is a brand that you can trust. With their accurate readings, easy installation process, durability, variety of options, and reputation for excellence, Vdo speedometers are a top choice for any car enthusiast or mechanic. Invest in the quality and reliability that Vdo offers today!
Understanding the components of Vdo electronic speedometer
Vdo electronic speedometers are used in vehicles to accurately measure and display the speed at which the vehicle is traveling. These speedometers are made up of several components that work together to provide an accurate reading.
1. Speed Sensor: The speed sensor is a crucial component of the Vdo electronic speedometer. It is typically installed in the transmission or in the wheel hub of the vehicle. The speed sensor measures the rotational speed of the wheels or transmission and sends this information to the speedometer.
2. Control Unit: The control unit is responsible for receiving the speed signals from the speed sensor and converting them into a format that can be displayed on the speedometer. It also contains the circuitry that controls the overall operation of the speedometer.
3. Wiring Harness: The wiring harness connects the speed sensor and control unit to the speedometer. It is crucial to ensure that the wiring harness is properly installed and securely connected to avoid any signal loss or interference.
4. Display: The display is the most visible component of the Vdo electronic speedometer. It is where the speed reading is displayed to the driver. The display can be a traditional analog dial or a digital display, depending on the model of the speedometer.
5. Power Supply: The speedometer requires a power supply to operate. This can come from the vehicle’s battery or an external power source. It is important to ensure that the power supply is properly connected and supplying the correct voltage to the speedometer.
- Conclusion: Understanding the components of a Vdo electronic speedometer is crucial for proper installation and troubleshooting. By familiarizing yourself with these components, you can ensure that the speedometer functions accurately and reliably.

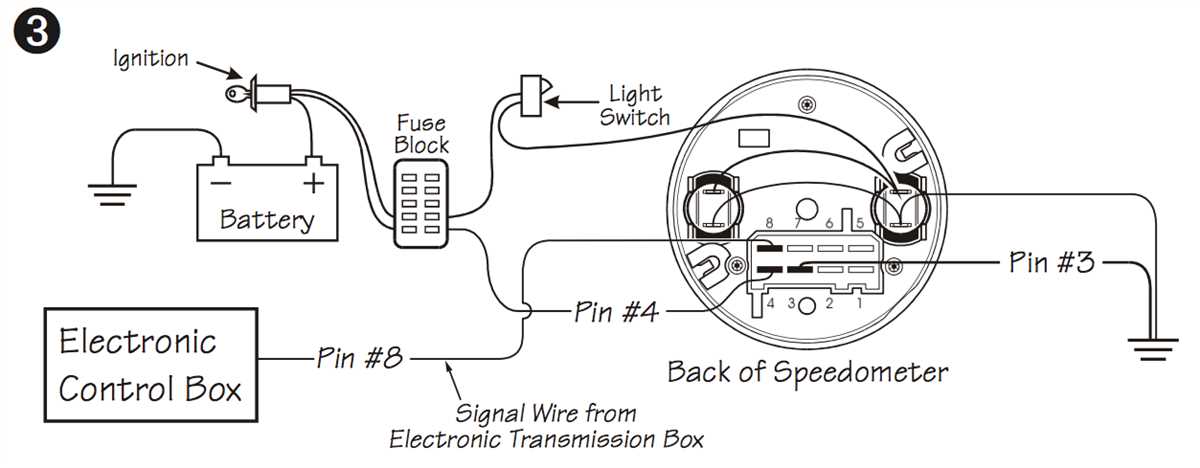

Step-by-step guide to wiring Vdo electronic speedometer
Wiring an electronic speedometer from Vdo can be a straightforward process if you follow the correct steps. In this guide, we will walk you through the process of wiring a Vdo electronic speedometer to ensure accurate readings and proper functionality.
Here is a step-by-step guide to wiring a Vdo electronic speedometer:
- Gather the necessary tools and materials: Before you begin, make sure you have all the tools and materials you will need. This includes a Vdo electronic speedometer, wiring harness, wire connectors, crimping tool, and electrical tape.

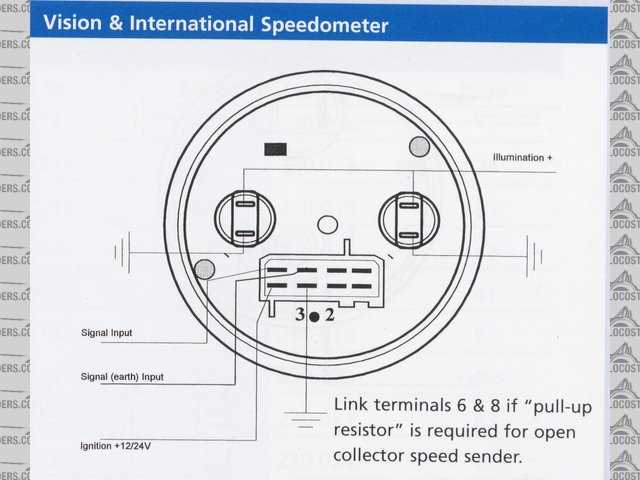

- Identify the speedometer wires: Start by identifying the wires on the back of the speedometer. The Vdo electronic speedometer typically has four wires – power, ground, signal, and illumination. Refer to the instruction manual or wiring diagram that came with the speedometer to determine the color coding for each wire.
- Connect the power wire: Connect the power wire (usually red) to a 12V power source. You can tap into the vehicle’s fuse box or connect directly to the battery. Use a wire connector and crimping tool to secure the connection. Make sure to add a fuse to the power wire for safety.
- Ground the speedometer: Ground the speedometer by connecting the ground wire (usually black) to a clean metal surface on the vehicle’s chassis. Ensure that the connection is secure and free of corrosion.
- Connect the signal wire: The signal wire (usually green or white) receives input from the vehicle’s speed sensor. Locate the vehicle’s speed sensor and identify the wire that provides the speed signal. Splice or connect the speedometer’s signal wire to the vehicle’s speed sensor wire using a wire connector and electrical tape.
- Wire the illumination: The illumination wire (usually orange) is responsible for lighting up the speedometer display. Connect the illumination wire to a dash light or an existing lighting circuit using a wire connector and electrical tape. Make sure the illumination circuit has the appropriate voltage for the speedometer.
- Test the speedometer: Once all the wiring connections are made, turn on the vehicle’s ignition and test the speedometer. Ensure that it properly displays the vehicle’s speed and that the illumination functions correctly. If any issues arise, double-check the wiring connections and consult the instruction manual or seek professional assistance.
By following this step-by-step guide, you should be able to successfully wire your Vdo electronic speedometer and enjoy accurate speed readings while on the road.
Troubleshooting common issues with Vdo electronic speedometer
If you are experiencing issues with your Vdo electronic speedometer, there are a few common problems that you may encounter. Here are some troubleshooting tips to help you diagnose and resolve these issues:
1. Check the power supply
One of the most common problems with Vdo electronic speedometers is a malfunctioning power supply. If your speedometer is not turning on or is displaying incorrect readings, it is possible that the power supply is not functioning properly. Check the connections to ensure they are secure and free from corrosion. You may also want to test the voltage of the power supply to ensure it is within the correct range.
2. Inspect the wiring
Faulty or damaged wiring can also cause issues with your Vdo electronic speedometer. Inspect the wiring harness for any signs of damage, such as frayed or exposed wires. Make sure all connections are tight and secure. If you find any damaged wiring, it may need to be replaced to restore proper functionality.
3. Calibrate the speedometer
If your Vdo electronic speedometer is displaying inaccurate readings, it may need to be calibrated. Consult the instruction manual provided with your speedometer for the correct calibration procedure. Follow the steps carefully to ensure accurate readings. If the calibration does not resolve the issue, there may be a deeper problem with the speedometer that requires professional attention.
4. Check for software updates
Vdo regularly releases software updates for their electronic speedometers to address any bugs or issues. Visit the Vdo website or contact their customer support to check if there are any available updates for your specific model. Updating the software can often resolve software-related issues and improve overall performance.
By following these troubleshooting tips, you should be able to diagnose and resolve common issues with your Vdo electronic speedometer. If the issues persist, it is recommended to consult a professional or reach out to Vdo customer support for further assistance.
Tips for maintaining Vdo electronic speedometer
Proper maintenance of your Vdo electronic speedometer is essential to ensure its longevity and accuracy. Here are some tips to help you keep your speedometer in excellent condition:
Regular cleaning
Regular cleaning of your speedometer is important to remove any dust, dirt, or debris that may accumulate on the surface. Use a soft cloth or a microfiber cloth to wipe the speedometer gently. Avoid using harsh chemicals or abrasive materials that may scratch or damage the surface.
Inspect for any loose connections
Periodically inspect all the connections of your Vdo electronic speedometer to ensure they are secure and not loose. Loose connections can cause inaccurate readings or malfunction of the speedometer. If you notice any loose connections, tighten them appropriately.
Check for any signs of damage
Regularly check your speedometer for any signs of damage, such as cracks, dents, or scratches. If you notice any damage, it is important to address it promptly to prevent further issues. Contact a professional if you are unable to repair the damage yourself.
Ensure proper calibration
Calibration is key to the accuracy of your speedometer. Follow the manufacturer’s instructions or consult a professional to calibrate your Vdo electronic speedometer correctly. Improper calibration can result in incorrect speed readings.
Protect from extreme temperatures
Avoid exposing your speedometer to extreme temperatures, as it can affect its performance. Extreme heat or cold can cause the speedometer to malfunction or become less accurate. If possible, store your speedometer in a temperature-controlled environment when not in use.
Keep away from water and moisture
Water and moisture can damage the internal components of your Vdo electronic speedometer. Avoid exposing it to rain, humidity, or any other sources of moisture. If your speedometer does get wet, dry it thoroughly before using it.
By following these tips and maintaining your Vdo electronic speedometer properly, you can ensure its accuracy and prolong its lifespan. Regular cleaning, checking for loose connections, inspecting for damage, proper calibration, protection from extreme temperatures, and keeping it away from water and moisture are essential for the optimal performance of your speedometer.
