Have you ever wondered why the horn on your motorcycle sounds weak or doesn’t work properly? One possible reason could be a lack of power getting to the horn. That’s where a motorcycle horn relay diagram comes in handy. By understanding how the electrical system works and using a relay, you can improve your motorcycle’s horn system and ensure that it always sounds loud and clear.
A motorcycle horn relay diagram is a visual representation of how the different electrical components are connected in your motorcycle. It shows how the horn, battery, relay, and switch are all linked together to create a functioning horn system. By following this diagram, you can easily identify any issues with your horn system and make the necessary repairs or upgrades.
The main purpose of a motorcycle horn relay is to provide a direct and uninterrupted power supply to the horn. It acts as a switch that controls the flow of electrical current, allowing a higher amount of power to reach the horn when the switch is activated. This ensures that the horn produces a loud sound, even in situations where the electrical circuit is weak or compromised.
By installing a motorcycle horn relay and following the relay diagram, you can enhance the performance of your motorcycle’s horn system. This will not only improve your safety on the road by making your presence known to other drivers, but it will also add a touch of style to your bike. So, don’t settle for a weak or malfunctioning horn – invest in a relay and use a diagram to get the most out of your motorcycle’s horn system.
What is a motorcycle horn relay?
A motorcycle horn relay is an electrical device that controls the operation of the horn on a motorcycle. It is designed to provide a more efficient and reliable way of activating the horn, as well as to protect the motorcycle’s electrical system from damage.
The horn relay acts as a switch that controls the flow of electricity to the horn. When the horn button is pressed, it sends a signal to the relay, which then activates the horn by completing the circuit and allowing electricity to flow through to the horn. This eliminates the need for the horn button to handle the full current required to operate the horn, which can be quite high and potentially cause damage to the button or the motorcycle’s electrical system.
One important advantage of using a motorcycle horn relay is that it allows for the use of a smaller horn button, which can be more aesthetically pleasing and less obtrusive on the motorcycle’s handlebars. Additionally, the relay can also be located closer to the horn, reducing the length of wiring needed and minimizing the risk of electrical interference.
Another benefit of using a horn relay is that it can help to prolong the lifespan of the horn itself. By reducing the amount of electrical current flowing through the horn button, the relay helps to prevent wear and tear on the button contacts, ensuring that the horn remains in good working condition for longer.
In summary, a motorcycle horn relay is an essential component of the electrical system that controls the operation of the horn. It provides a more efficient and reliable way of activating the horn, protects the motorcycle’s electrical system, and helps to prolong the lifespan of the horn.
Understanding the basics
When it comes to motorcycle horns, many riders may not realize the importance of a horn relay. The horn relay is an electrical component that helps to regulate the power flow to the horn, ensuring that it operates effectively. Without a relay, the horn may not work at its full potential, or worse, it may not work at all.
So how does a horn relay work? The relay acts as a switch that is controlled by a small electrical signal from the horn button. When the horn button is pressed, it sends a low-amperage current to the relay, which then activates a high-amperage circuit to power the horn. This allows the horn to produce a loud and clear sound, alerting other motorists of your presence on the road.
Basic components of a motorcycle horn relay diagram:
- Horn button: This is the button located on the handlebar that the rider presses to activate the horn. It sends an electrical signal to the relay.
- Relay: The relay is an electrical switch that controls the power flow to the horn. It is activated by the signal from the horn button.
- High-amperage circuit: Once the relay is activated, it allows a high-amperage current to flow from the battery to the horn, powering it to produce a loud sound.
- Horn: The horn is the actual sound-producing component that emits a loud noise when powered by the high-amperage current. It is usually mounted on the front of the motorcycle.
Overall, understanding the basics of a motorcycle horn relay diagram is important for any rider. By knowing how the relay works and the components involved, riders can troubleshoot any issues they may encounter with their horn and ensure that it is working properly. It is also essential to follow the wiring diagram provided by the motorcycle manufacturer or consult a professional if you are unsure about any electrical connections.

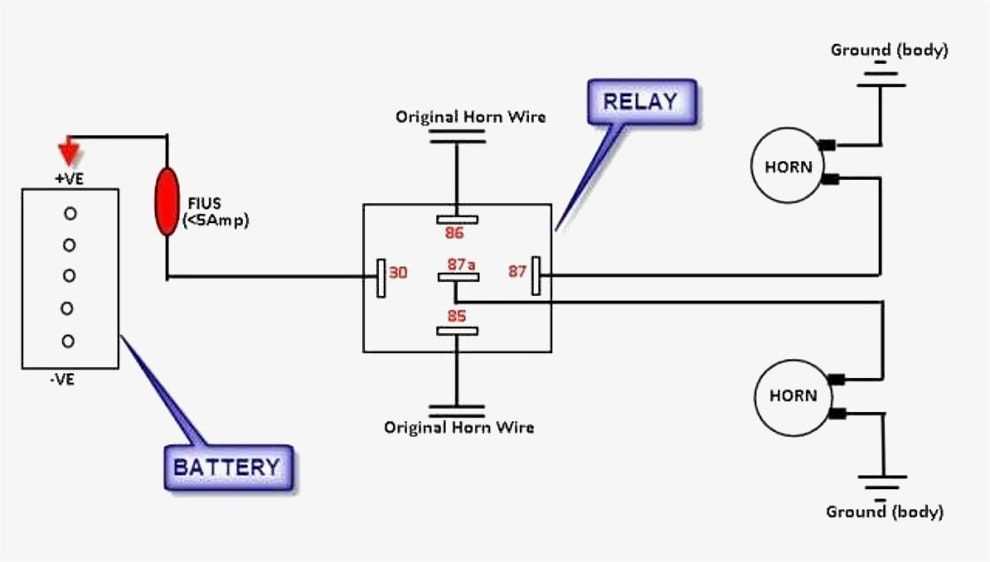

Why is a horn relay necessary?
In a motorcycle electrical system, a horn relay is necessary to ensure the proper functioning of the horn. The horn relay is an electrical component that acts as a switch for the horn. It allows the high current required by the horn to be controlled by a low current circuit, which prevents damage to the horn button and wiring system.
When the horn button is pressed, a small current from the battery is sent to the horn relay. The horn relay then uses this low current signal to activate a larger current flow, which powers the horn. This relay system helps to prevent excessive current flow through the horn button and wiring, reducing the risk of overheating or potential damage. It also helps to extend the lifespan of the horn by ensuring that it only operates when necessary.
A horn relay also provides other benefits, such as improved horn performance. By utilizing a relay, the horn can receive a more consistent and stable power supply, resulting in a louder and more reliable sound. Additionally, the use of a horn relay allows for easier troubleshooting and maintenance of the horn system, as it isolates the horn circuit from the rest of the electrical system.
In summary, a horn relay is necessary in a motorcycle electrical system to protect the horn button and wiring from excessive current flow, ensure proper and consistent horn performance, and facilitate troubleshooting and maintenance. It is an essential component that enhances the overall functionality and longevity of the horn system.
Importance of a Horn Relay
When it comes to motorcycles, safety is a top concern for riders. One essential safety feature is the horn, which plays a crucial role in alerting other drivers and pedestrians of your presence on the road. However, to ensure that your horn functions properly, it is important to have a horn relay installed in your motorcycle’s electrical system.
A horn relay is a device that helps regulate the power supply to the horn. It acts as a switch that controls the flow of electricity from the battery to the horn. Without a horn relay, the horn’s electrical circuit would have to handle the full current required to operate the horn, which can be cumbersome and inefficient.
Here are several reasons why a horn relay is important:
- Efficient power delivery: A horn relay allows for efficient power delivery to the horn by reducing the load on the horn’s electrical circuit. It prevents the horn from drawing excessive current, which could lead to overheating or damage to the electrical system.
- Protection for the horn switch: The horn relay protects the horn switch from high currents. By acting as an intermediary between the horn switch and the battery, the relay prevents the switch from carrying heavy currents that could cause it to fail or melt.
- Improved horn performance: With a horn relay, the horn can operate at its optimal performance level. The relay ensures that the horn receives a consistent and reliable power supply, resulting in a loud and clear sound when activated.
- Easier installation: Installing a horn relay is relatively simple and straightforward. It usually involves connecting a few wires between the battery, horn switch, and horn itself. This ease of installation makes it an accessible and cost-effective safety upgrade for motorcycle riders.
In conclusion, a horn relay is a vital component of a motorcycle’s electrical system. By providing efficient power delivery, protecting the horn switch, improving horn performance, and offering easy installation, it enhances the safety and functionality of the motorcycle’s horn. Therefore, it is highly recommended to have a horn relay in place to ensure your horn operates reliably and effectively while on the road.
How does a motorcycle horn relay work?
A motorcycle horn relay is an electrical device that controls the operation of the horn. It acts as a switch and allows the horn to receive power from the motorcycle’s battery. The relay ensures that the horn receives a consistent and sufficient amount of power, which is necessary for it to produce a loud and clear sound.
The basic operation of a motorcycle horn relay involves four main components: the control circuit, the electromagnet, the contacts, and the power circuit. When the rider presses the horn button on the handlebar, it completes the control circuit and activates the relay.
By completing the control circuit, an electrical current flows through the electromagnet, which generates a magnetic field. This magnetic field attracts the contacts, closing the switch in the power circuit. Once the switch is closed, power is sent from the battery to the horn, allowing it to produce sound.
The use of a relay in the motorcycle horn circuit has several advantages. Firstly, it reduces the load on the horn button, as it only needs to activate the relay rather than directly powering the horn. This prolongs the lifespan of the button and ensures consistent performance. Additionally, the relay provides a mechanism for regulating the amount of power sent to the horn, which helps prevent damage to the horn and ensures a reliable sound output.
In conclusion, a motorcycle horn relay plays a crucial role in the operation of the horn by controlling the flow of power from the battery. It helps to maintain a consistent and sufficient power supply, ensuring that the horn produces a loud and clear sound when activated.
Exploring the functionality
The motorcycle horn relay diagram is a visual representation of the circuitry involved in operating the horn on a motorcycle. It shows the various components of the horn system and how they are connected to each other. Understanding the functionality of the relay diagram is crucial for troubleshooting and repairing any issues with the horn system.
Relay: The horn relay is a device that controls the flow of electrical current to the horn. It acts as a switch and is typically activated by the motorcycle’s horn button. When the button is pressed, the relay allows current to flow from the battery to the horn, producing the horn sound. The relay also protects the horn and the wiring from excessive current, preventing damage.
Horn: The horn is the main sound-producing component of the horn system. It is typically located at the front of the motorcycle and is designed to produce a loud and attention-grabbing sound. The horn is connected to the relay through a set of wires, which allow the current to flow and activate the horn when the relay is triggered.
Wiring: The wiring in the relay diagram represents the electrical connections between the various components of the horn system. It ensures that the current flows properly and that the horn activates when the relay is triggered. The wiring is color-coded and labeled to make it easier to identify the different connections and troubleshoot any issues.
Functionality: The motorcycle horn relay diagram shows how the various components work together to produce the desired horn sound. When the horn button is pressed, it completes the circuit and activates the relay. The relay then allows the current to flow to the horn, which produces the sound. If there are any issues with the horn not working, the relay diagram can be used to identify and troubleshoot the problem, such as a faulty relay or a broken wire. It is an essential tool for ensuring the proper functioning of the horn system on a motorcycle.
Summary: The motorcycle horn relay diagram provides a visual representation of the circuitry involved in operating the horn system. It shows the relay, horn, wiring, and their connections. Understanding the functionality of the relay diagram is essential for troubleshooting and repairing any issues with the horn system. By analyzing the diagram, one can identify the various components and their roles in producing the horn sound, as well as identify any potential issues that may be causing the horn to malfunction.
Components of a motorcycle horn relay
A motorcycle horn relay is an electrical device that helps to activate the horn when the rider presses the horn button. It acts as a switch that controls the flow of electrical current from the battery to the horn. The relay consists of several components that work together to produce a loud and clear horn sound.
1. Coil: The coil is the main component of the horn relay. It is an electromagnetic coil that generates a magnetic field when current passes through it. This magnetic field attracts the movable contact, closing the relay contacts and activating the horn.
2. Contacts: The contacts are made of metal and are located inside the relay. There are two sets of contacts in a typical horn relay: the normally open (NO) contact and the normally closed (NC) contact. When the coil is energized, the normally open contact closes, allowing the electrical current to flow to the horn. At the same time, the normally closed contact opens, interrupting the current flow from the horn button.
3. Diode: A diode is a semiconductor device that allows current to flow in only one direction. In a motorcycle horn relay, a diode is connected across the coil to protect the electrical system from voltage spikes when the coil is de-energized. It prevents damage to other components and ensures the relay functions properly.
4. Mounting bracket: The mounting bracket is used to secure the relay to the motorcycle’s frame or other suitable location. It provides stability and prevents the relay from moving or vibrating while the motorcycle is in motion.
5. Wiring harness: The wiring harness connects the relay to the motorcycle’s electrical system. It consists of wires, connectors, and terminals that enable the relay to receive power from the battery and transmit the current to the horn when activated.
Overall, the motorcycle horn relay is a crucial component that helps to ensure the horn operates correctly and efficiently. It plays a vital role in providing safety on the road by alerting other drivers and pedestrians of the rider’s presence.
