Start by confirming the voltage rating of the flexible light tape: typically 12V or 24V DC. Use a power adapter that precisely matches this rating to avoid overload or dimming issues.
Cut the luminous tape only at the marked cut points, usually spaced every 5 or 10 cm. Cutting elsewhere can damage the internal circuit, rendering adjacent sections inoperative.
For joining sections, use pre-soldered connectors or carefully solder the copper pads at the cut points. Always maintain polarity: connect the positive (+) copper pad to the positive wire and the negative (–) pad to the negative wire. Reverse wiring will prevent illumination or may harm components.
When installing long runs exceeding 5 meters, apply parallel feeds to distribute voltage evenly. Running a single feed over extended lengths causes voltage drop, resulting in uneven brightness towards the far end.
Consider adding an inline controller if using color-changing light ribbons. Connect the controller between the power supply and the light tape, following the manufacturer’s wiring layout to ensure proper function of dynamic effects and remote operation.
Use waterproof connectors and enclosures if setting up outdoors or in damp environments. Ensure all connections are sealed to IP65 or higher to prevent moisture ingress and short circuits.
Wiring Layout for Flexible Light Tape
Directly link the positive (+) and negative (−) terminals from the power source to the copper pads on the light tape, ensuring polarity matches. Use 22–20 AWG wires for short runs up to 5 meters; switch to 18 AWG for distances beyond that to reduce voltage drop.
Include a 5A fuse on the positive line if the power supply exceeds 60 watts. For runs longer than 5 meters, add extra power feeds at the far end or every 5 meters to maintain brightness consistency.
RGB or color-changing setups require a controller between the power unit and the lighting tape. Connect the R, G, B, and common (+) lines correctly; mismatching leads to incorrect colors or malfunction. Verify the controller’s amperage rating matches the total tape load.
For corner turns, use designated snap connectors or solder flexible jumpers between cut points marked by scissor icons. Avoid bending the tape sharply; maintain a minimum bending radius of 2 cm to prevent circuit damage.
Outdoor or damp environments need weatherproof sealing. Apply heat-shrink tubing over joints and use silicone or epoxy to protect exposed copper areas. Use IP65 or higher-rated tapes and enclosures for all external installations.
Before applying adhesive backing, clean the mounting surface with isopropyl alcohol. For uneven or porous surfaces, reinforce with mounting clips or aluminum channels to ensure long-term adhesion and proper heat dissipation.
How to Connect Multiple Light Tapes to One Power Supply
Use a power supply with sufficient amperage to handle the total wattage of all light tapes combined. Calculate total load: multiply the wattage per meter by the total length in meters. Choose a supply with at least 20% extra capacity.
- Wire each tape in parallel, not series. Connect all positive wires (+) to the positive terminal and all negative wires (−) to the negative terminal of the supply.
- For long runs (over 5 meters), feed power at both ends or use power injection in the middle to prevent voltage drop.
- Use appropriate wire gauge: for runs under 5 meters, 20 AWG is often enough; for longer runs or higher currents, switch to 18 AWG or thicker.
- Install fuses or inline protection on each branch to safeguard against shorts or overloads.
- Double-check polarity before powering on to avoid damaging the light tapes or the supply unit.
- If using a dimmer or controller, ensure it supports the total current draw and place it between the supply and the tapes.
Test each segment after wiring to confirm even brightness and stable operation across all sections.
Wiring a Single Color Light Tape with a Dimmer Switch
Use a 12V or 24V DC power supply matched to the voltage rating of the flexible light ribbon. Confirm the total wattage by multiplying the wattage per meter by the total length; choose a power source with at least 20% higher capacity.
Connect the positive (+) output of the power adapter to the input terminal marked “+” on the dimmer unit. Attach the negative (–) wire from the adapter to the dimmer’s “–” input terminal.
On the output side of the dimmer, link the “+” terminal to the positive copper pad of the monochrome lighting tape. Link the “–” terminal to the negative copper pad. Double-check polarity to prevent malfunction.
If the setup exceeds 5 meters, inject power at both ends or every 5 meters to prevent voltage drop and brightness loss. Use compatible connectors or solder wires directly to the copper pads, ensuring firm contact and insulation to avoid shorts.
Before powering on, inspect all connections, confirm no exposed wires, and set the dimmer to minimum to avoid current spikes on startup. Once powered, gradually adjust brightness to desired levels.

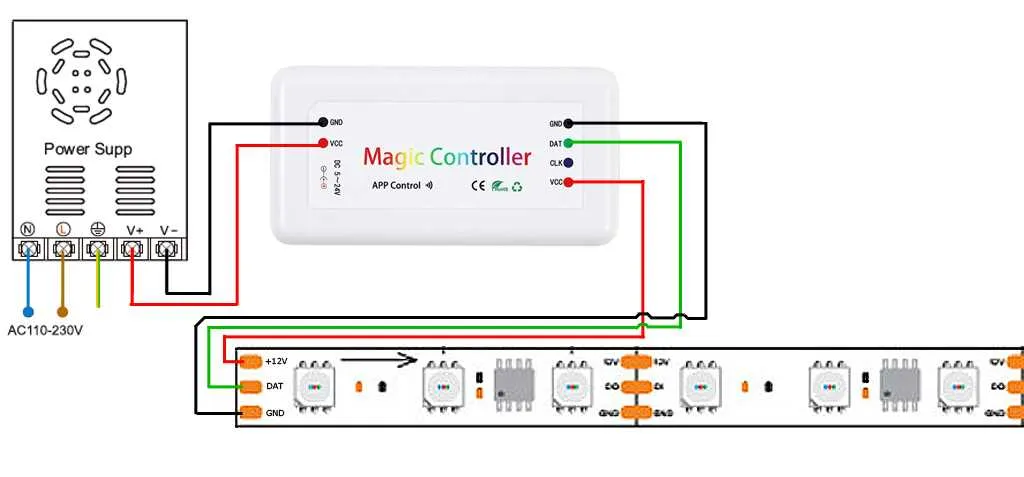

Common Mistakes When Connecting RGB LED Strips with Controllers
Always match the voltage rating between the controller and the RGB tape; using a 12V controller with a 24V flex circuit or vice versa can cause immediate failure or poor illumination performance.
Double-check the polarity before attaching wires; reversing positive and negative leads may burn out components or cause erratic color behavior.
Avoid extending runs beyond the maximum recommended length (usually 5 meters for 12V models) without adding amplifiers or repeaters, as voltage drop leads to dim or uneven colors at the end of the run.
Ensure secure, soldered, or properly clamped connections; loose joints create flickering, intermittent operation, or complete loss of signal on specific color channels.
Use appropriate wire gauges for power transmission; thin wires over long distances create resistance, leading to heat buildup and reduced brightness.
Never connect RGB flex lights directly to mains power; always use a compatible power supply with the correct output to prevent dangerous overvoltage.
Pay attention to controller signal compatibility; mixing digital addressable tapes (like WS2812) with analog controllers designed for simple RGB will not work and can damage both parts.
Separate power lines for high-current runs; routing all current through the controller’s terminals can overload them, so inject power directly into the tape when needed.
