Start by ensuring you have the correct components for proper installation. The L5 30p setup involves understanding the specific electrical contacts and their configuration. Begin by identifying the power source and the load connections, ensuring that all terminals are appropriately labeled.
For a reliable connection, focus on the correct polarity between the live, neutral, and ground lines. Pay attention to the amperage rating for compatibility with your equipment. Use high-quality connectors to avoid power loss or overheating during operation.
Verify each terminal is securely fastened to avoid intermittent contact, which could lead to system failures. If you’re unsure about any step, consult a professional to ensure safety and compliance with local electrical standards.
L5 30A Electrical Connector Setup

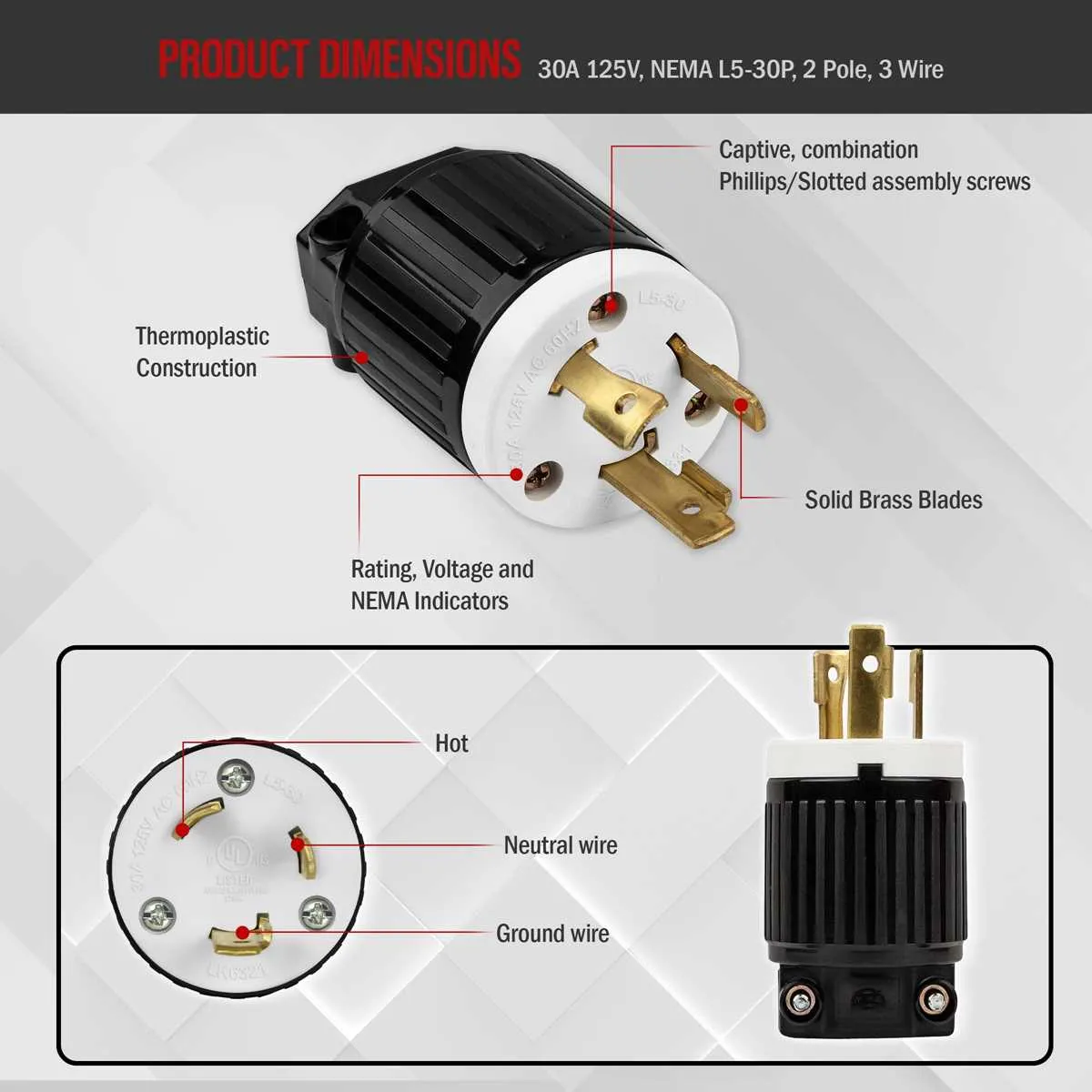

To correctly wire the L5 30A plug, connect the ground wire to the green terminal, ensuring it is securely fastened. The neutral wire should be attached to the silver-colored terminal, while the hot wire connects to the brass terminal. Double-check that the connections are tight to avoid any loose contacts, which could lead to overheating or electrical failure. Use high-quality, durable wire for a stable connection. Properly strip the ends of the wire to expose enough copper for a solid connection, but avoid excessive stripping that could expose too much of the conductor.
Ensure the plug is rated for 30 amps and use a breaker of the same rating to maintain the safety of the system. When connecting the electrical unit, avoid overloading the circuit. It’s crucial to ensure that the plug is correctly oriented when inserted into the socket to ensure proper flow of electricity and avoid possible damage to equipment.
For added safety, use a lockable cover on the outlet to prevent accidental disconnections and protect the wiring from environmental hazards. Always verify the connections with a multimeter before powering up the system to ensure proper voltage and continuity.
Understanding the L5 30p Wiring Setup
To safely connect an L5-30 plug, ensure the correct match of each conductor with its respective terminal on the outlet. The hot wire should be connected to the brass terminal, the neutral to the silver terminal, and the ground wire to the green terminal. Double-check the voltage ratings and confirm that the circuit can handle the intended load, typically rated at 250V. This setup is primarily used for high-power equipment like generators, ensuring the connection can manage up to 30 amps of current.
When installing, use a quality locknut to secure the connector to the box and prevent movement. Verify that all connections are tight to avoid overheating. A loose connection can create resistance, potentially leading to a fire hazard. For maximum safety, always test the installation with a voltage tester before powering on the equipment.
Pay special attention to the wire gauge. For a 30-amp setup, use a 10 AWG wire, and ensure that the cable is rated for outdoor use if the installation is exposed to the elements. Protective conduit may be necessary in some cases to avoid damage to the wiring.
Step-by-Step Guide to Connecting L5 30p Receptacle
1. Turn off the power supply before starting any work to prevent electrical shock.
2. Strip the insulation from the ends of the wires to expose the copper conductors. Ensure the wires are long enough to reach the terminals comfortably.
3. Attach the ground wire (typically green or bare copper) to the designated terminal on the receptacle. Tighten the terminal screw securely to prevent the wire from coming loose.
4. Connect the neutral wire (usually white) to the neutral terminal. Ensure a firm connection by tightening the screw completely.
5. Attach the hot wire (typically black) to the hot terminal. Ensure the wire is fully inserted and secured by tightening the screw tightly.
6. Check for any frayed or damaged wires and replace them if necessary to ensure safety and functionality.
7. Once all connections are secure, carefully attach the receptacle to the electrical box using screws. Ensure it is properly aligned and does not shift.
8. Install the cover plate over the receptacle. Make sure it fits snugly without any gaps.
9. Turn the power back on and test the connection with a voltage tester to ensure it is working correctly.
Common Issues with L5-30 Plug Connections and Troubleshooting Tips
If you’re experiencing issues with your L5-30 plug connections, follow these troubleshooting steps to resolve them quickly:
- Loose Connections: Inspect the terminals to ensure the wires are securely connected. Tighten any loose screws on the plug terminals to prevent intermittent power loss.
- Incorrect Wire Placement: Verify that each wire is connected to the correct terminal: hot wire to the brass terminal, neutral wire to the silver terminal, and ground to the green terminal.
- Corrosion: Check for signs of corrosion or rust around the terminals. Clean them with a wire brush and apply contact cleaner to maintain a solid connection.
- Overloaded Circuit: Ensure that the equipment connected to the plug doesn’t exceed the rated amperage. If necessary, use a multimeter to check the current draw and ensure it’s within safe limits.
- Damaged Insulation: Inspect the insulation around the wires for any cuts or abrasions. Replace any damaged cables to prevent short circuits or electrical hazards.
For complex issues, consider testing the circuit with a voltmeter to confirm the presence of correct voltage levels. If the problem persists, it may be necessary to replace the plug or consult a qualified electrician.
