When installing or troubleshooting the rear illumination system of the JK, it’s crucial to understand the proper connection setup for optimal function. Incorrect wiring can lead to issues such as dimming, malfunctioning signals, or complete failure of the assembly. Follow these steps to ensure each component is securely wired.
Step 1: Begin by disconnecting the vehicle’s battery to prevent any electrical hazards during the process. Identify the main connections that control brake, reverse, and indicator functions in the assembly. These are the critical points where most issues arise, so focusing on their integrity will save time.
Step 2: Ensure that each wire is routed correctly to avoid interference with other electrical systems. Typically, the power wires should be routed through the central column, while the ground connection should be established with a solid metal part of the vehicle body for safety and durability.
Step 3: Test each individual circuit with a multimeter before securing any connections. This step will verify that voltage levels are consistent, confirming that the system is ready for use without electrical failures or flickering.
Step 4: Double-check the connections at the assembly level. Ensure that the correct colored wires are attached to the designated pins, as indicated by the vehicle’s factory wiring setup. Misconnections here could lead to short circuits or an unresponsive lighting system.
By following these detailed steps, you can ensure that your JK’s rear electrical system functions smoothly and safely, avoiding potential wiring issues down the road.
Wiring Setup for JK Rear Electrical System
Ensure the proper connections are made between the electrical components by following the color-coded chart for each circuit. The brake signal should be routed to the red wire, which connects to the central fuse block. For reverse signals, the yellow wire should be used, extending from the reverse switch to the rear fixture. The ground wire, typically black, should be firmly connected to the vehicle’s chassis or a clean metal point to avoid interference or malfunction.
For enhanced performance, make sure to use high-quality connectors that resist corrosion. The 12V power line needs to be properly fused, with a 15-amp fuse placed within 6 inches of the power source. The connectors should be tightly secured to prevent any loose connections that could cause electrical issues during operation.
Test the entire system by applying voltage to each line and confirming the proper functionality of each component, including brake and reverse signals. Ensure all the connections are correctly polarized to prevent any malfunction of the electrical systems when in use. Make adjustments if any lines show inconsistencies or fail to respond correctly under normal operation.

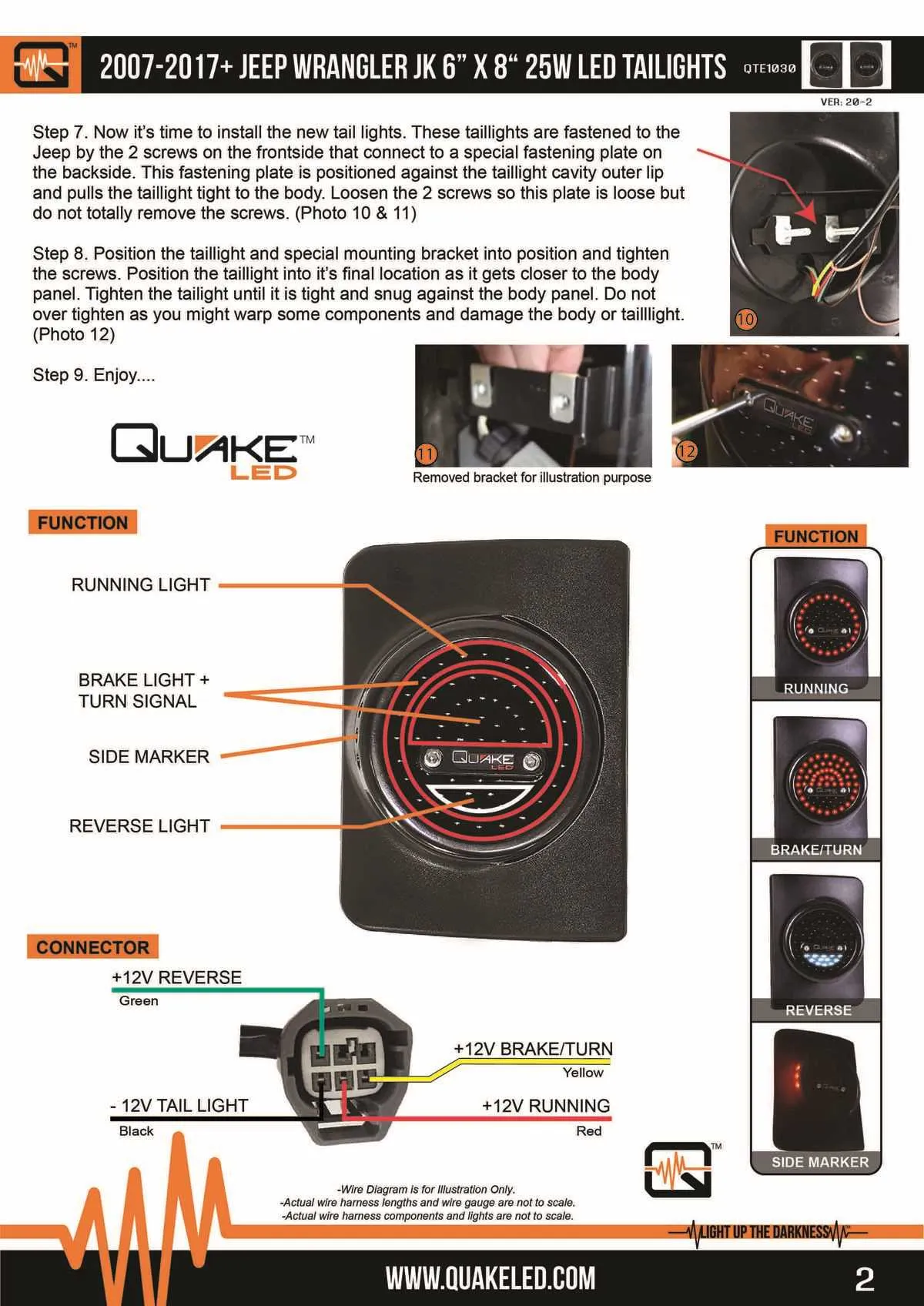

Identifying JK Rear Lamp Wire Color Codes for Proper Connection
To ensure correct installation of your vehicle’s rear lamps, it is crucial to identify and match the appropriate wire color codes. Here are the primary connections you’ll encounter:
Brake/Stop: Typically, the wire for the brake function is red with a white stripe. This should be connected to the positive terminal for the braking system.
Turn Signal: The indicator wire is generally green, often accompanied by a yellow stripe. This wire must be routed to the corresponding side’s turn signal mechanism.
Ground: A black wire usually serves as the ground connection. Secure this wire to a clean, unpainted metal surface to ensure proper electrical return.
Reverse: The reverse light wire is usually violet. This connection will trigger the reverse lamps when the transmission is shifted to reverse gear.
Running/Marker: The running lights often use a brown wire. This must be linked to the circuit that powers the marker lights, allowing for constant illumination.
Double-check each connection before powering the system to avoid any issues with functionality. Always consult the specific vehicle manual for any variations in wire coloring.
Step-by-Step Guide to Troubleshooting Electrical Issues on the Rear Lamps of a Jeep JK
To resolve any malfunction with the rear lamps, start by confirming the fuse status. A blown fuse is a common cause. Locate the fuse box and inspect the corresponding fuse for any signs of damage.
- Check the fuse: Use a fuse tester or a multimeter to verify if the fuse is intact. Replace it if necessary.
- Inspect connections: Loose or corroded connectors can lead to unreliable signals. Ensure the terminals are clean and tightly connected.
If the fuse is intact and connections are solid, proceed with checking the ground circuit.
- Test grounding points: A poor ground can cause malfunction. Clean the grounding points and use a multimeter to verify continuity.
- Verify the ground wire: Check for breaks or fraying along the wire that connects the lamps to the chassis.
Next, examine the bulbs and their contacts.
- Test the bulb: Inspect the filament for any breaks. If the bulb is faulty, replace it with a new one.
- Clean the contacts: If the contacts appear dirty or oxidized, clean them with electrical contact cleaner before reinstalling the bulb.
If the issue persists, consider the switch controlling the rear functions.
- Test the switch: Use a multimeter to check the functionality of the switch. Replace if it shows inconsistent behavior.
- Inspect the wire leading to the switch: Check for any visible damage or wear. Ensure that there are no broken wires.
Finally, ensure that the relay responsible for powering the lamps is functioning correctly.
- Test the relay: Use a multimeter or test light to check the relay. If it’s malfunctioning, replace it.
- Inspect the relay harness: Ensure the relay is securely mounted and that the wiring is intact.
By following these steps, most electrical problems related to the rear lamp system can be diagnosed and corrected effectively.

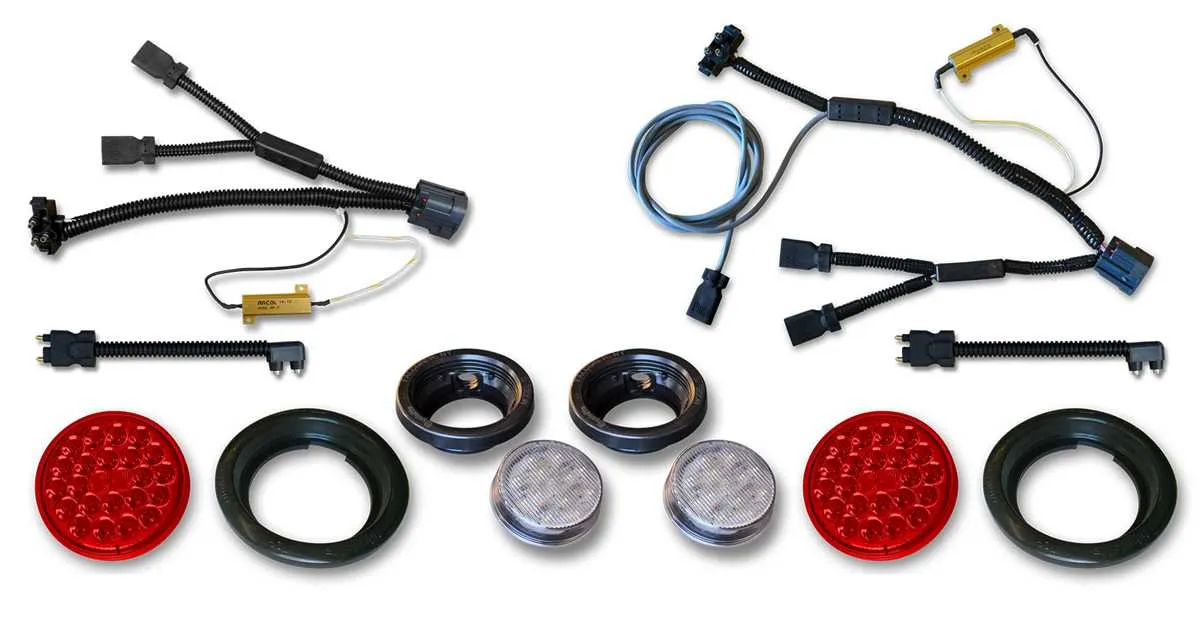

Upgrading Your JK Rear Lamp System for LED Conversion
When converting to LEDs, start by verifying the voltage requirements of your new lamps. Most LED assemblies operate on 12V, but check for any specific voltage or current demands from your new setup. It’s essential to ensure that the new system matches your vehicle’s power output to avoid issues.
For proper functionality, resistors or a load equalizer may be needed to prevent hyper-flashing. These components ensure the turn signals work at the correct speed by balancing the reduced load of LEDs compared to the original incandescent bulbs. Without them, the blinking rate could be too fast, signaling malfunction.
Next, use a high-quality harness to connect the LED units to the vehicle’s power source. This reduces the risk of voltage drops or interference, which could affect the LEDs’ brightness or cause them to flicker. A direct and secure connection is crucial for optimal performance.
In cases where the new lamps are equipped with integrated brake and reverse functions, double-check the pin configuration. LEDs often require specific wiring setups for functions like brakes or reverse, so ensuring the right configuration helps avoid confusion and malfunction.
Lastly, if the conversion includes upgrading the reflector or housing, ensure the new housing design supports the LED units’ heat dissipation requirements. LEDs produce less heat than traditional bulbs, but poor ventilation or inadequate housing could lead to reduced performance or lifespan.
