If you’re working on restoring or repairing your GM vehicle’s indicator system, knowing the proper connections is essential. Start by identifying the key components: the indicator relay, the left and right switches, and the corresponding bulbs. Understanding their placements in the electrical setup will help you avoid miswiring and ensure that both front and rear lights function as expected.
First step: Locate the flasher relay. This is the component that controls the flashing of your lights. Typically found in the fuse box or near the steering column, this unit needs to be properly connected to both the left and right switches. Make sure the relay’s terminals are in good condition and the connection points are free from corrosion.
Second step: Check the connections between the switches and the bulbs. Each side of the car will have its own dedicated wiring, with separate circuits for the front and rear indicators. Ensure that the wiring is not damaged and that the connectors are secure. Faulty connections can lead to malfunctioning lights or no response at all from the system.
Lastly: Test your setup. Before finishing, verify that the electrical flow is correct. You can use a multimeter to check the voltage across the terminals to make sure the current is reaching the bulbs when the switch is engaged. A small mistake can lead to a non-functioning system, so double-check each part carefully.

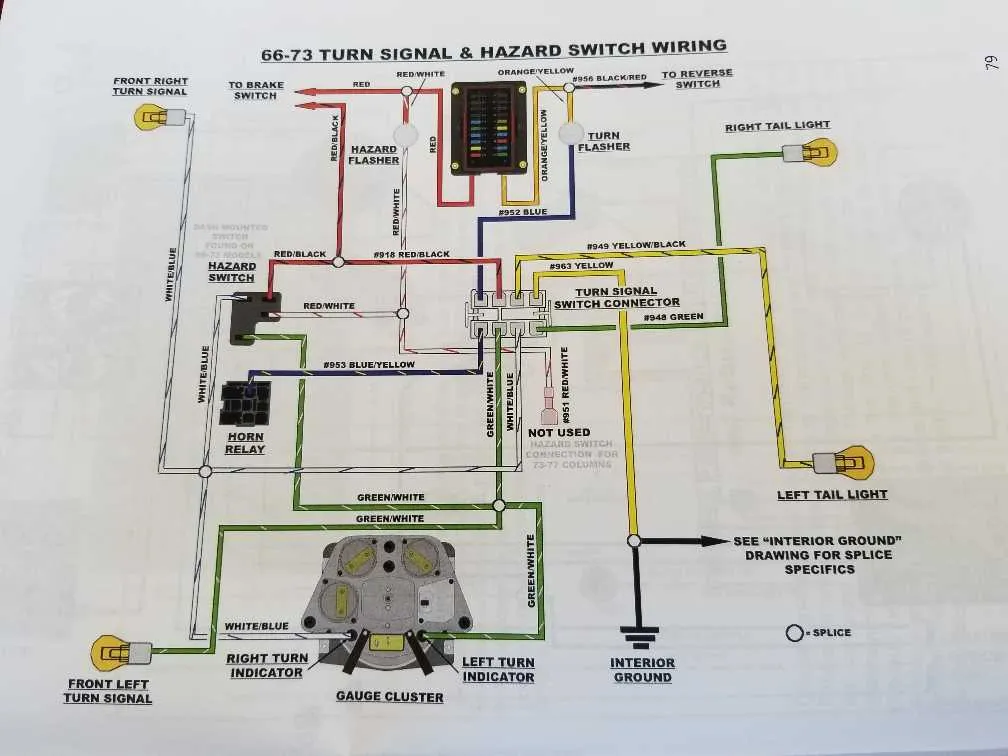

GM Indicator Circuit Setup
For optimal function of your vehicle’s left and right flashers, adhere to these steps for proper connection. Make sure you are familiar with the component layout before proceeding.
- Locate the Flasher Relay: This is typically found beneath the dashboard or within the fuse box. It controls the blinking rate and operates both lights.
- Wire the Control Switch: The switch on the steering column connects directly to the relay. Ensure the wires for the left and right mechanisms are properly inserted into the switch terminals.
- Connect to the Ground: The system requires a solid grounding point to complete the circuit. Without a good ground, the indicators will fail to blink properly.
- Test Functionality: After connections are made, check if both sides flash at a consistent rate. Adjust the relay if necessary to correct any irregularities.
Proper connection is essential for accurate operation. Refer to the vehicle’s manual for color codes specific to your model for further assistance with the wiring connections.
- Left indicator wire: Usually colored green or yellow.
- Right indicator wire: Typically blue or brown.
- Common ground: Often black or bare copper.
Incorrect connections can lead to malfunction or a complete failure of the lighting system, making this setup crucial for safe driving.
Understanding the GM Turn Indicator Electrical System
To properly troubleshoot or install a GM vehicle’s indicator circuit, begin by locating the dedicated fuse for the indicator circuit in the fuse panel. This fuse plays a key role in protecting the system from power surges and shorts. Always check its condition before proceeding with any repair or replacement work.
Step 1: Identify the components involved in the circuit. This includes the indicator stalk, relays, bulbs, and the control module that regulates the functionality. Each part communicates with the others through a series of electrical connections that must be intact for proper operation.
Step 2: Inspect the stalk switch for functionality. If the lights fail to operate or malfunction intermittently, the stalk may be faulty. Disconnect the wiring from the stalk to perform a continuity test and ensure proper current flow through the system.
Step 3: Check the relays. These small electrical devices direct power to the appropriate lamps when activated. A malfunctioning relay can cause erratic behavior or complete failure of the system. Using a multimeter, verify the relay’s continuity by testing its terminals for correct resistance levels.
Step 4: Examine the bulbs. If the indicators fail to illuminate, it could be a simple issue of a blown bulb. Replace it and test the circuit. If the new bulb does not light, the issue lies further upstream, likely with the wiring or switch.
Step 5: Inspect the electrical connections. Over time, connectors can corrode or become loose, which interferes with the current flow. Clean all affected terminals and ensure secure connections to restore functionality. Use dielectric grease to prevent future corrosion.
Step 6: Test the control module. This component often regulates the timing and operation of the indicator system. A faulty module can lead to delayed or inconsistent activation. Replacing the module may resolve persistent issues that can’t be traced to the switch, relay, or bulbs.
Step-by-Step Guide to GM Indicator Installation
Ensure you have the correct components before starting: wire connectors, electrical tape, a multimeter, and the GM control unit. A poor connection can lead to malfunction, so take your time to verify the setup.
1. Disconnect the battery: Always start by removing the vehicle’s negative terminal. This prevents any electrical issues during installation.
2. Remove the steering column cover: Using a screwdriver, carefully remove the plastic cover around the steering column. This gives you access to the control switches that manage the indicator function.
3. Identify the appropriate leads: Locate the wires responsible for the left and right functions in the column harness. The wires should match color coding–refer to the vehicle’s specific guide for exact identification.
4. Attach the new wires: Connect the new leads to the existing ones. Use high-quality connectors to ensure a solid connection. Secure the wires with electrical tape or heat shrink tubing to avoid any exposure to moisture or wear.
5. Test the setup: Before reassembling the steering column, connect the battery and verify the circuit. Use a multimeter to confirm that each wire completes the circuit as expected. Both left and right functions should engage with the corresponding switch.
6. Reassemble the column cover: Once everything is functioning correctly, reassemble the steering column cover carefully. Make sure all components are securely in place to avoid any rattling or discomfort while driving.
7. Final check: Reconnect the battery, start the vehicle, and verify that the system works correctly in a real-world setting. Test both sides thoroughly to ensure proper functionality.
Troubleshooting Common GM Turn Signal Wiring Issues
Start by checking the multifunction switch connector for corrosion or loose pins. Use a multimeter to confirm continuity between the lever contacts and the output harness. Resistance higher than 1 ohm indicates internal wear–replace the stalk assembly.
If the blinker operates erratically, inspect the flasher module under the dashboard. Swap it with a known-good unit to verify. Older models may use thermal flashers; upgrade to an electronic type for stable cycling.
Intermittent behavior often results from a poor ground near the lamp housing. Scrape paint and debris from the chassis contact point and reattach using a star washer for metal-to-metal contact.
For dead bulbs on one side, probe the harness at the socket with the lever engaged. If voltage is present but the lamp stays off, the socket is likely oxidized or cracked–replace it. If no voltage, trace back to the fuse panel; fuse #17 or #19 in most GM trucks controls side markers and indicators.
Dim illumination typically stems from high resistance in the contact base or worn filament connections. Clean terminals with dielectric grease and reseat firmly. Replace faded housings to restore reflectivity.
