For optimal towing setup, ensure proper connection of all seven wires in the vehicle’s electrical system. Understanding each wire’s function is crucial to avoid connectivity issues or malfunctioning of the attached load. You’ll need to match the color codes and corresponding terminals as per industry standards to ensure seamless integration.
Start by identifying the functions of each wire: Ground (often white) should be securely connected to the chassis to prevent electrical faults. The left turn signal (typically yellow) and right turn signal (usually green) must be routed correctly to activate the vehicle’s indicators. Additionally, brake lights should be paired with the appropriate wire (often red), while tail lights use the brown wire. These are essential for safe driving, signaling turns and stopping actions.
The reverse lights wire, usually blue, should be handled carefully to ensure it only activates when reversing, preventing unnecessary light signals during normal towing. The auxiliary power wire, typically purple or black, should provide sufficient energy for additional accessories like electric brakes or air compressors. Finally, the battery charge wire (often orange) delivers consistent charging to the attached load, which is important for keeping its systems functioning during long trips.
Once the wiring is laid out, perform a thorough test before hitting the road. Check that all connections are secure and functional, confirming that each signal activates correctly on the attached unit. This methodical setup will save time, minimize risks, and ensure the electrical integrity of the entire towing system.

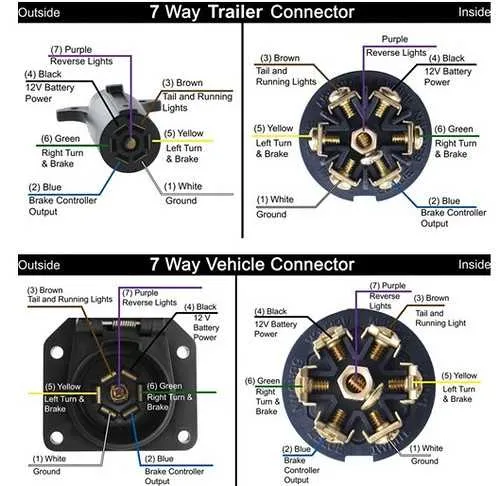

7-Pin Connector Electrical Layout for Towing
To ensure correct functionality of the 7-way electrical connector when towing, refer to the specific terminal placement for your vehicle. The typical configuration for a 7-pin connector includes connections for brake lights, turn signals, ground, reverse lights, electric brakes, auxiliary power, and a battery charge line. Make sure that each wire is connected according to the standard color codes for compatibility.
For optimal performance, verify that the ground connection is secure to avoid malfunctioning signals. The reverse light pin is often a challenge, requiring a dedicated circuit that ensures proper vehicle-reverse interaction. Check for any pin corrosion or wear, especially in environments with high moisture exposure, to maintain a solid electrical flow.
Use a multimeter to test the continuity of the wiring and ensure each circuit is active before connecting your towing equipment. Any irregularities in voltage readings could indicate a wiring issue or faulty relay that needs to be addressed immediately.
Additionally, some models may feature a dedicated auxiliary pin for additional power requirements, such as powering a winch or a refrigerator. If your setup includes such a feature, confirm the amperage rating of the auxiliary line to prevent overloading. Regular inspections are recommended to keep your towing system in top working condition.
Understanding the 7-Terminal Connection for Vehicle-End Setup
To ensure a secure and efficient link between your vehicle and a connected load, it is essential to understand the 7-terminal configuration commonly used for electrical connections. Each terminal serves a specific function that corresponds to a different system, such as brake lights, turn signals, or reverse lights.
The first terminal is for the ground wire, providing a stable return path for the electrical circuit. The second terminal typically handles the running lights, allowing continuous illumination for safety. The third terminal is used for the left turn signal, while the fourth terminal manages the right turn signal.
The fifth terminal is dedicated to the electric brake system, crucial for load control during braking. The sixth terminal provides a connection for the reverse light, which is particularly important when backing up. The seventh terminal is used for auxiliary power, supplying additional energy for features like a battery charger or power outlets on the load.
For proper installation, ensure each wire is connected to its corresponding terminal. Use connectors that guarantee a solid fit and prevent corrosion. Additionally, test the setup thoroughly before use to ensure all systems function as intended. Keep in mind that any misconnection or failure to secure the terminals properly could lead to malfunctioning or even damage to the vehicle or load.
Step-by-Step Guide to Connecting the 7-Terminal Connector
Begin by preparing all necessary components: a 7-terminal connector, appropriate wires, electrical connectors, and a tool kit for installation. Ensure the vehicle’s power system is off to prevent any electrical issues.
- Locate the connection point: Find the socket on your vehicle where the connector will be installed. This is typically located near the rear bumper or hitch area.
- Prepare the wiring: Cut and strip the wires to appropriate lengths. Ensure each wire is long enough to reach from the connection point to the appropriate terminals inside the connector.
- Identify wire functions:
- White wire – Ground.
- Blue wire – Electric brakes.
- Green wire – Right turn signal.
- Yellow wire – Left turn signal.
- Brown wire – Tail lights.
- Red wire – Brake lights.
- Black wire – Auxiliary power.
- Connect the wires:
- Insert each wire into the appropriate terminal slot in the connector, ensuring a secure connection.
- Use crimp connectors to firmly attach wires to the terminals inside the connector. Ensure there are no exposed wires.
- Secure the connection: Once all wires are connected, secure the connector in place using screws or clips. Ensure that it is firmly attached to avoid any movement while driving.
- Test the connections: Turn on the vehicle’s power and test each function, including turn signals, brake lights, and auxiliary power, to verify proper functionality.
- Final inspection: Double-check all connections for stability, ensuring there is no corrosion or looseness in the wires or terminals.
By following these steps carefully, you will successfully install the 7-terminal connector and ensure proper functionality for towing or other needs.
Common Troubleshooting Tips for 7-Pin Electrical Connector Issues
Check for a secure connection between the electrical harness and the vehicle’s connector. Ensure that no pins are bent or corroded, as even a slight misalignment can prevent proper communication. Clean any dirty or rusty terminals using a wire brush or contact cleaner to improve conductivity.
If the signals are inconsistent or non-functional, verify that the fuses related to the electrical system are intact and properly rated. A blown fuse can interrupt essential functions such as lights or brake indicators.
Inspect the ground connection for continuity. A loose or poor ground can lead to malfunctioning lights or power loss to critical systems. Tighten any loose grounding points, and check for any exposed wires that could cause short circuits.
Test each circuit individually with a multimeter to identify any failures or interruptions in the power supply. If certain functions, such as the left or right turn signal, aren’t working, check the specific wire for breaks or damage.
Ensure that the connectors are free from water and moisture, as they can cause rust or short-circuits. If necessary, apply a moisture-resistant sealant to prevent further corrosion.
