When selecting a deep water lifting system, focus on key components such as the motor, impeller, and discharge head. These elements work together to efficiently move water from below the surface to the desired elevation. A reliable motor with appropriate power capacity is crucial for handling the depth and pressure encountered during operation.
Motor selection is essential. Opt for high-efficiency electric motors designed for underwater use, ensuring they are durable enough to withstand constant immersion and pressure. Choosing the right power rating prevents overheating and increases lifespan.
The impeller is the heart of the system. It creates the necessary flow by forcing water through the pump. For optimal performance, select one that matches the desired flow rate and the depth of the source. Material durability is another consideration, as it should resist wear from minerals and sediments in the water.
The discharge head directs the flow towards the surface. Properly sizing this part to match the system’s power ensures efficiency. It should be built to handle the required pressure and volume of water, with a design that minimizes energy loss during transfer.
Understanding these components allows for better decision-making when configuring or troubleshooting your lifting system. Consistently maintaining each part extends operational life and minimizes the need for repairs.
Understanding the Structure of a Deep Water Extraction System
The core structure of an underground water extraction device consists of several key components designed for efficient operation. The motor, placed at the bottom of the shaft, drives the impeller, which propels water upwards through a series of connected pipes. The impeller’s design ensures optimal water flow, while the casing protects the entire mechanism from debris and damage.
The motor’s placement at depth is crucial for consistent water delivery, especially in areas with varying water levels. The connection between the motor and the impeller should be carefully sealed to prevent leakage. Additionally, the cable that supplies power to the motor must be durable enough to withstand long-term use underwater, ensuring reliable operation without frequent maintenance.
Flow rate optimization is another important aspect. The size of the pipes, along with the motor’s power capacity, directly affects the amount of water moved per unit of time. It’s essential to match the system’s capacity with the specific requirements of the water source, considering both volume and pressure needed for the intended use.
Regular maintenance checks are necessary to ensure the motor remains properly lubricated and free from rust, which can compromise efficiency. It is also important to monitor the integrity of the pipe connections to avoid water loss. Ensuring that all components are in good working condition will maximize the longevity and performance of the water extraction system.
Understanding the Key Components of a Deep Water Extraction System
The motor is the primary driving force in a deep water extraction system, responsible for powering the impeller to push water to the surface. Choose a motor with appropriate voltage and power rating to ensure efficiency and avoid overheating.
The impeller plays a crucial role in water movement. It is designed to create the necessary pressure to lift water from underground sources. A corrosion-resistant material, such as stainless steel, enhances durability and prevents damage from minerals in the water.
The discharge head connects to the system’s outlet and houses the check valve. The check valve is essential to prevent backflow, ensuring that water does not return to the source when the system is off.
The cable assembly links the power source to the motor. High-quality insulation is necessary to avoid electrical faults and water ingress, which can lead to system failure.
The casing protects internal components from environmental elements and water pressure. It should be made from durable materials like corrosion-resistant metals to prolong the lifespan of the system.
Ensure proper sizing of each component based on the depth and flow rate requirements of your system. Inadequate sizing can lead to inefficient performance or premature failure.

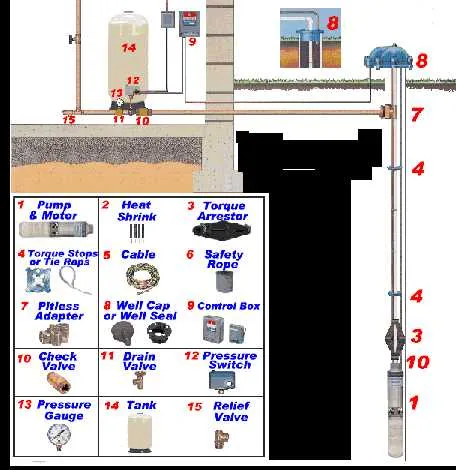

How to Read a Submersible Pump Wiring Diagram
To effectively interpret the wiring plan of an underground water system, follow these essential steps:
- Identify the Power Source – Locate the input terminals, which indicate where the electricity enters the system. This is typically connected to the main electrical panel.
- Understand the Grounding – Ground wires are crucial for safety. Ensure that the system is properly grounded to prevent electrical hazards.
- Locate the Control Box – The control box regulates the motor’s operation. Its connections to the motor and the power source should be clearly shown.
- Examine the Motor Leads – These wires connect the motor to the control system. Pay attention to the wire color codes, as they often indicate specific connections, such as power or signal input.
- Check for Switch Connections – If a float switch or pressure switch is used, locate these on the wiring map. These components trigger the motor to start or stop based on water level or pressure.
Ensure each wire is clearly labeled, and use a multimeter to verify continuity and proper function of each connection point. Always refer to manufacturer instructions for detailed wire color coding and specific configurations.
Common Issues in Pump Schematics and Troubleshooting
Ensure correct wiring and power supply first. Low voltage can lead to inadequate motor function. Verify that the electrical connections are secure and that there are no loose terminals, as this can cause overheating.
Check for impeller blockages. Foreign objects can obstruct the flow of water, causing excessive wear or complete failure. Regularly inspect the intake and discharge areas for debris and clean them thoroughly to prevent damage.
Examine the motor’s cooling system. If overheating occurs, it may be due to a lack of proper ventilation or a malfunctioning cooling fan. Ensure that the pump is not running dry, as this can lead to severe damage.
Inspect the check valve for proper operation. A malfunctioning check valve can cause backflow, which may damage the mechanical seals or bearings. Test it periodically to ensure it functions correctly and replace it when necessary.
Monitor the operating depth. Excessive immersion or inadequate depth can affect performance. Ensure that the unit is positioned within the recommended range to avoid strain on the motor or loss of efficiency.
Look for signs of vibration. Uneven wear or incorrect alignment of the shaft may cause vibrations that lead to mechanical failures. Perform regular alignment checks and replace any worn-out components.
Test for water leakage around the seals. Leaks can indicate worn or damaged seals, which should be replaced immediately to prevent contamination and damage to internal parts.
Ensure the thermal overload protection is functioning. If the motor overheats, the thermal cut-off should engage to protect the system. Test this feature regularly and reset the system if necessary.
