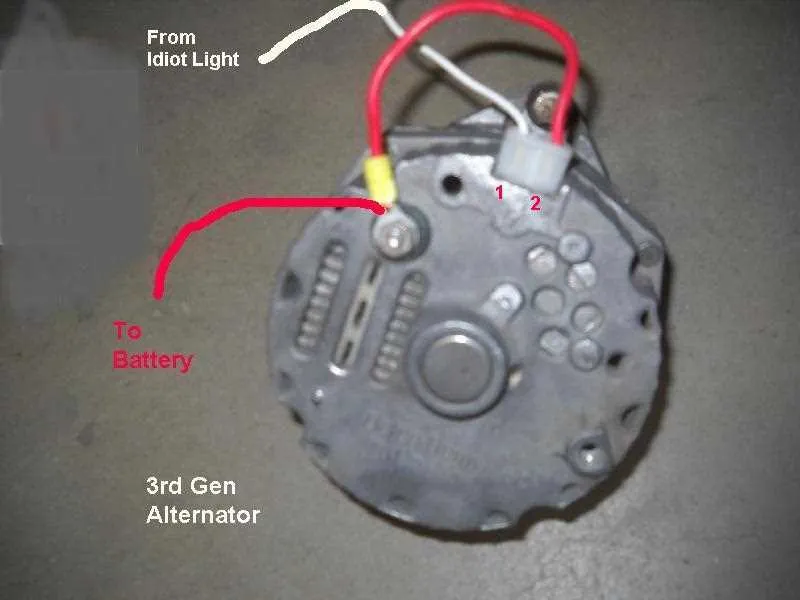

Wiring Guide for GM 5.7L Engine Charging System
Ensure proper connection of the generator by following these steps:
- Connect the main power lead: Attach the positive cable from the battery to the main terminal on the generator.
- Ground connection: Secure a solid ground wire from the engine block to the negative terminal of the battery.
- Exciter wire: The small wire (usually marked as “S” or “F”) must be connected to the ignition switch to enable charging during engine startup.
- Voltage regulator wire: Connect the field terminal to the voltage regulator, ensuring it properly controls the charging process.
- Voltage sensing wire: Attach the sensing wire (usually marked as “S” or “R”) to the battery side of the system to monitor the charge level.
Check that all connections are tight and free of corrosion to avoid malfunction. Make sure to follow the manufacturer’s recommendations for wire gauge and fuse protection.
Verify the setup with a multimeter to confirm correct voltage output, typically between 13.8V and 14.4V when the engine is running.
If wiring appears worn or damaged, replace immediately to avoid electrical failures.
Understanding the Basic Connections for a 350 Chevy Alternator
To ensure proper operation, make sure the connection between the charging system and the battery is secure. The main output wire from the generator should be connected to the battery terminal, typically on the positive side. This enables the flow of electricity to charge the battery while the engine is running.
The exciter wire, commonly connected to the ignition switch or a key-on source, is essential for the initial energizing of the system. This connection triggers the unit to start generating power once the engine is turned on.
Grounding is another critical aspect; ensure that the grounding strap or wire from the unit is securely attached to a metal part of the engine block or frame. This minimizes the risk of electrical interference and ensures that the generator is operating at peak efficiency.
Check the voltage regulator connections, which should be secured to prevent fluctuations in voltage that could lead to undercharging or overcharging. It is vital that the regulator is properly wired to monitor the system’s output and adjust accordingly.
Finally, inspect the belt tension. If the belt is loose, it can cause the generator to underperform, reducing the overall effectiveness of the charging system. Proper adjustment of the drive belt will help maintain consistent operation and avoid electrical issues.
How to Troubleshoot Common Charging System Electrical Problems

Check the voltage output first. Use a multimeter to verify that the system is producing between 13.5 to 14.5 volts while the engine is running. If it’s below that range, inspect the connection between the regulator and the battery to ensure there’s no corrosion or loose contact.
Inspect the positive and negative terminals. Make sure that the main wire from the power source is tightly connected to the battery terminal. Loose connections can lead to insufficient current flow, causing electrical issues in the system.
Next, examine the ground connection. A poor ground can prevent proper system function. Ensure that the ground wire is securely attached to the engine block or the chassis, free of rust, dirt, or paint that might impede conductivity.
Test the voltage at the regulator. If the voltage readings are inconsistent, the regulator may be malfunctioning. A defective regulator can lead to overcharging or undercharging, damaging the entire electrical circuit.
Inspect the rotor and stator. If the system fails to charge, there may be an issue with these internal components. Check for damaged wires, worn brushes, or a broken rotor, which can prevent proper current generation.
Finally, verify the belt tension. A loose or worn belt may not allow proper rotation, leading to insufficient charging capacity. Ensure the belt is tight and free from wear, cracks, or fraying. If necessary, replace the belt to restore proper function.
Step-by-Step Guide to Replacing and Rewiring Your 5.7L V8 Charging System
1. Disconnect the Battery: Before starting, ensure the battery is completely disconnected. This prevents any accidental electrical shorts while handling the components.
2. Locate the Electrical Components: Identify the location of the charging system on the engine. Typically, it’s mounted on the passenger side near the front of the engine block.
3. Remove the Existing Component: Using a socket wrench, remove the bolts securing the unit to the engine bracket. Carefully pull the unit away from the mount, making sure to avoid damaging the belts and adjacent parts.
4. Disconnect the Wiring Harness: Loosen the terminal nuts on the electrical connections. Use a wrench to remove the connection to the main power lead, and unscrew the ground wire from its terminal. If necessary, use pliers to carefully disconnect the remaining connector leads.
5. Install the New Part: Position the new component in place and secure it with the mounting bolts. Ensure the unit is aligned properly with the engine bracket, and tighten all bolts securely.
6. Reconnect the Electrical Connections: Attach the main power lead to the positive terminal and reconnect the ground wire to its designated terminal. Double-check that all connections are tight and free of corrosion.
7. Install the Drive Belt: If the drive belt was removed during the process, now is the time to install it. Ensure that the belt is properly aligned with the pulleys and tensioned correctly.
8. Test the System: Reconnect the battery and start the engine. Monitor the voltage readings to ensure that the charging system is functioning correctly. A healthy system should show a voltage increase when the engine is running.
9. Inspect for Leaks or Issues: Look for any electrical shorts, leaks, or noises. If everything seems operational, the installation is complete. If any issues persist, recheck the connections and the tension of the drive belt.
