Optimal separation of washing, rinsing, and sanitizing zones is essential for maintaining hygiene and workflow efficiency in commercial kitchens. Each section must be properly sized and arranged to ensure smooth progression of cleaning tasks without cross-contamination.
Accurate layout planning supports water flow management and allows for correct placement of faucets, drains, and splash guards. Proper drainage slopes and positioning of fixtures reduce water pooling and speed up drying times.
Choosing materials resistant to corrosion and heat enhances durability under continuous use. Stainless steel is the preferred choice due to its robustness and ease of cleaning. Incorporating ergonomic spacing between basins minimizes operator strain and improves overall productivity.

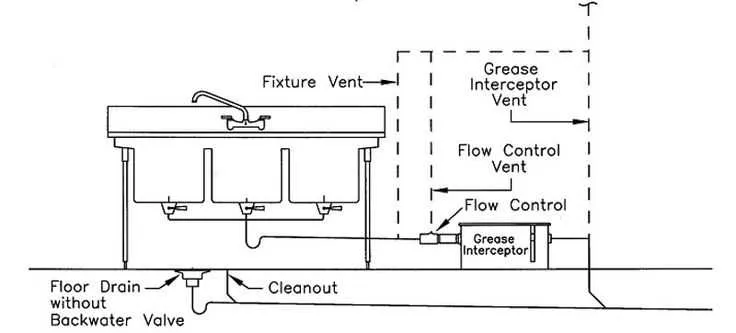

Step-by-step layout of plumbing connections
Begin by installing the drain assembly for each basin separately, ensuring each outlet aligns perfectly with its respective pipe. Use compression fittings to secure the tailpieces to the traps, preventing leaks.
Next, connect the traps to a common horizontal waste line using appropriately sized PVC piping, typically 1½ to 2 inches in diameter. Maintain a slight downward slope of about 1/4 inch per foot to ensure proper drainage.
Integrate vent pipes at junction points to avoid airlocks, connecting them to the main vent stack according to local plumbing codes. These vents maintain atmospheric pressure and promote smooth water flow.
Install shut-off valves on the cold and hot water supply lines feeding the faucets. Use flexible braided hoses for easier alignment and secure fittings to prevent water hammer.
Ensure that all connections are tightened to manufacturer specifications and test the system by running water through each basin individually, checking for any leaks or slow drainage.

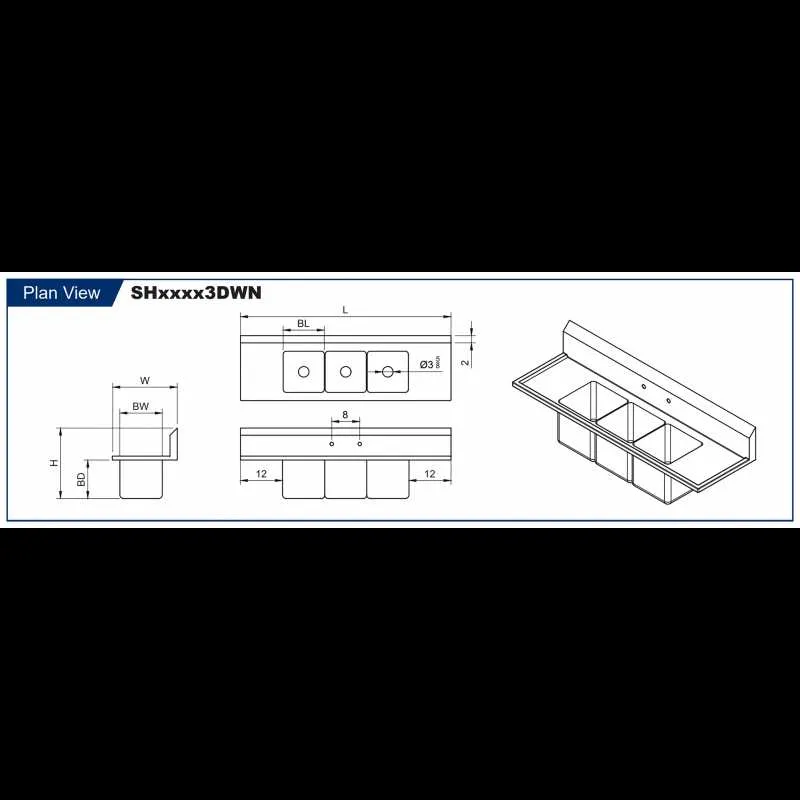

Proper sizing and placement of compartments
The width of each basin should be no less than 14 inches and the depth at least 12 inches to allow effective washing and rinsing without water splashing. The total length typically ranges from 36 to 72 inches depending on workspace requirements.
Spacing between sections must provide at least 12 inches of countertop space on either side to facilitate smooth workflow and utensil handling. Positioning the wash basin on the left, rinse in the center, and sanitize on the right optimizes sequence efficiency in most operations.
The height of the fixture should be between 34 and 36 inches from the floor to prevent strain during repetitive tasks. Consider ergonomic angles by ensuring basins are not too shallow, which can cause excessive bending.
Drain placement should align with plumbing access points and avoid obstruction of basin capacity. Installing drainboards adjacent to each basin aids in drying and organization, enhancing the overall functionality of the cleaning area.
Common Troubleshooting in Three-Tub Systems
When water flow is inadequate, check the plumbing connections for blockages or leaks. Inspect hoses for kinks and ensure that the water supply valves are fully open. A slow drain could be due to accumulated grease or debris, requiring a thorough cleaning of the pipes leading to the drainage system.
If the water temperature isn’t reaching the required level, test the heating unit for proper function. Verify the thermostat settings and inspect for any power interruptions. For systems relying on electric heating, make sure the electrical connections are intact and functional.
If there’s an odor issue, inspect the draining area for stagnant water or food particles. A buildup of residues can lead to foul smells, which can be minimized by routinely cleaning the internal surfaces. Utilize appropriate detergents to remove grease and organic matter that contribute to unpleasant odors.
Leaks around the edges of the units typically stem from improper seals or gaskets. Examine these parts and replace them if necessary. Frequent tightening of screws around the tub joints might prevent leakage.
If there is a persistent issue with water not draining completely, the issue is often due to improper slope in the draining area or clogging at the drain point. A professional assessment of the draining system might be required for adjustment.
For units with multiple sections, ensure each area is equipped with a dedicated water supply valve. If water flow is inconsistent between sections, verify each valve and pipe for any malfunctions or obstructions. Regular maintenance and cleaning will extend the lifespan and improve performance.
